Process canvas: Documenting integrations

Boomi Scribe reduces the time it takes to document saved processes. It can generate documentation for any version or branch of an integration you currently have open in the process canvas. After making edits to your integration, you can generate documentation so it’s up to date. Process documentation includes the following sections:

  • Overview - lists a detailed summary of the process, describing the flow of data and the results.
  • Process Diagram - displays an illustration of the process as it appears in the process canvas.
  • Process Metadata - lists metadata about the process, including name, version, component statistics, and more.
  • Business Context - lists applications and the business value they provide.
  • Process steps and functions - explains each step in the process and the actions associated with it. It also includes details for up to five subprocesses, with high-level details for any additional subprocesses.
  • Process Schedule - when deployed integrations have a schedule, this section lists the runtime ID, the hour and minute the process runs, and the frequency.
  • Process Extensions - when deployed integrations have process connection extensions, this section lists the connection name and property name for configuration settings within the process. Scribe currently supports documenting process extensions if the process contains 5 or less connections. If you remove a connector with an extension, open extensions and click Save to continue documenting extensions in Scribe.

Prerequisites

To use Boomi Scribe, you must have the following:

  • Integration Build Read Write access. Read User roles and privileges to learn more about default Boomi Enterprise Platform roles and permissions.
  • Agreement to the Boomi AI terms and conditions. Administrators can select the AI icon > Get Started to view and accept terms and conditions.

Important considerations

  • Boomi Scribe currently supports the English language.
  • Boomi Scribe does not support documentation for processes that include a cycle or loop.
  • Boomi Scribe can document integrations with up to 100 steps. However, depending on the complexities of an integration, such as the number of configurations within each step, you may experience response errors while documenting integrations with less than 100 steps.
  • Steps that are disconnected from the process are not included in documentation.
  • To successfully generate documentation for a process, you need permission to access all its associated components.
  • After editing and saving the process or closing the process tab, Integration deletes the previously generated documentation.
  • Documentation generated by Boomi Scribe isn't saved in the platform.

Walkthrough

  1. In Integration, open a process.
  2. Optional: To document a different version of the process, click Revision History in the bottom right and open the version you want to document.

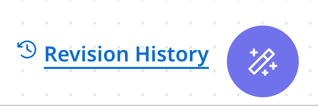

  3. Click the AI button in the bottom right corner.
    AI button in the process canvas
  4. In the Boomi Scribe menu, select Create and download documentation for this process.
  5. Optional: After Boomi Scribe generates the documentation, click the Download with process diagram button to export documentation as a .docx file. When opened in a .docx-supported editor, the content includes the process diagram and appears similar to how content appears in the canvas. Layout and spacing may differ depending on the editor. This feature is available with Chrome, Edge, Firefox, and Safari browsers.
  6. Optional: You can click the Copy icon to copy and paste the text into your content management system. Copying the diagram is not supported. The text is in Markdown.
  7. Optional: You can leave feedback about Scribe responses. Click the thumbs up or thumbs down button next to a response to open the feedback window. You have the option to submit detailed feedback.
note

Generated documentation will remain available if you close the Boomi Scribe document window. The documentation reappears when you open the Scribe window. However, documentation will be cleared when you do any of the following:

  • Close the process tab
  • Log out of the Boomi Platform
  • Save new changes to the process
