Enabling metrics for Claude Code

important

The Monitoring Spec feature is currently not available in the UK/EU Platform.

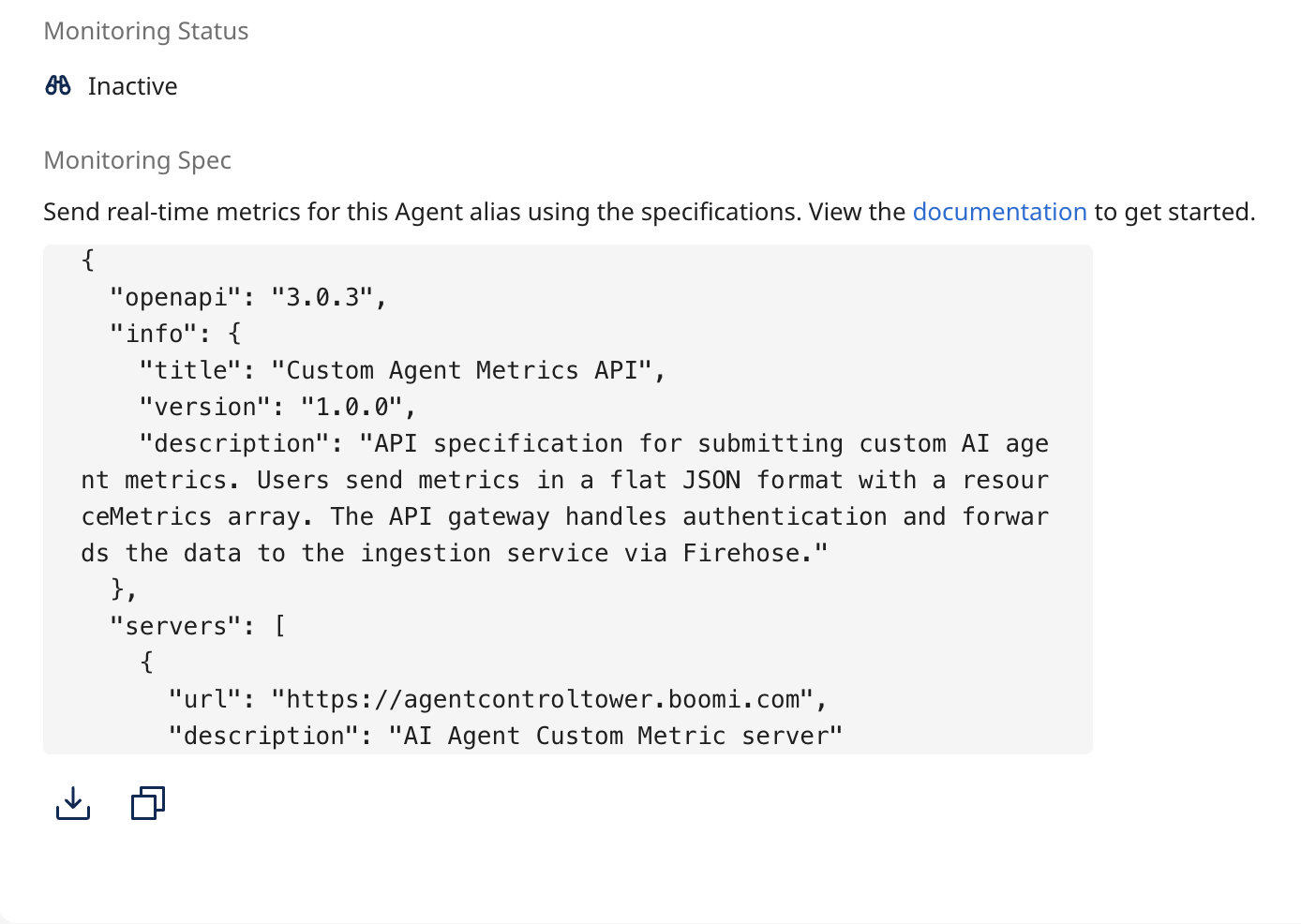

To enable Claude code agent metrics on the Agent Control Tower, you need the Monitoring Spec available in the overview section of your agent ALIAS.

Prerequisites

• You need to have a published Agent Alias of your agent created.
• You must use the extAccountAliasId and providerType from the Monitoring Spec section for integrating monitoring metrics with ACT.
• You need a Boomi Access Token.
• You need a settings.json file in your .claude folder.

Levels of settings configuration

You can update the settings.json file in two locations depending on your metric ingestion needs.

1. ~/.claude/settings.json: Is set up in the main .claude folder and applies to all the claude user sessions
2. <project-root>/.claude/settings.json: Is set up at the project-level

Project-level settings apply only when Claude Code is invoked from within that particular project directory. Any key defined at the project level overrides the same key from the user-level file. Keys absent from the project file fall through to user-level.

For example, if you put the OTLP config (e.g. a different X-Alias-Id) in .claude/settings.json inside a project, only sessions started from that project directory send metrics with those settings. Sessions outside that directory use only ~/.claude/settings.json.

As per the official Claude Code documentation, ~/.claude/settings.json applies to all Claude Code surfaces including CLI, VS Code extension, and JetBrains IDE. OTLP metrics will be forwarded from all three wherever Claude Code is invoked. For more information refer to Settings hierarchy and OTLP Monitoring.

Configuring the settings file

To enable metrics perform the following steps:

1. Go to the agent Alias of the agent you want to use.

2. From the Overview tab, navigate to the Monitoring Spec section and copy or download the OpenAPI spec to your local desktop.



3. Open or create the settings.json file and store it under the .claude folder.

4. Add the following env block:

   {
    "env": {
    "CLAUDE_CODE_ENABLE_TELEMETRY": "1",
    "OTEL_METRICS_EXPORTER": "otlp",
    "OTEL_EXPORTER_OTLP_PROTOCOL": "http/json",
    "OTEL_EXPORTER_OTLP_METRICS_ENDPOINT": "https://agentcontroltower.boomi.com/metric-ingestion/v1/idp-accountid/otlp/public/metrics",
    "OTEL_EXPORTER_OTLP_HEADERS": "Authorization=Basic <base64-token>,X-Alias-Id=<agent-alias-id>,Origin=https://claude.ai",
    "OTEL_RESOURCE_ATTRIBUTES": "providerType=CUSTOM_PROVIDER,operation=InvokeAgent,promptType=Interactive",
    "OTEL_METRIC_EXPORT_INTERVAL": "5000",
    "OTEL_EXPORTER_OTLP_METRICS_TEMPORALITY_PREFERENCE": "delta"
      },
   }
   note

   Set CLAUDE_CODE_ENABLE_TELEMETRY to "1" to enable telemetry. Setting it to "0" disables metric forwarding entirely.

5. Add in the server URL and idp-accountId you obtained from the monitoring spec for example "https://agentcontroltower.boomi.com/metric-ingestion/v1/boomi_productmanagement-YXXXXF/otlp/public/metrics" to OTEL_EXPORTER_OTLP_METRICS_ENDPOINT.

6. For Authorization,

   1. construct the credential string using your username and platform API token: BOOMI_TOKEN.<user-email-id>:<your-platform-api-token>
   2. Run the following command in your terminal: echo -n "BOOMI_TOKEN.<user-email-id>:<your-api-token>" | base64
   3. In the settings file, set the "OTEL_EXPORTER_OTLP_HEADERS" as "Authorization=Basic <paste-base64-output-here>,X-Alias-Id=<alias-id>,Origin=https://claude.ai" where alias ID is the external Alias ID from the monitoring spec.

Verifying the setup

important

Close all the previously running Claude sessions to restart a Claude Code session so that it picks up the configuration from the settings.json and wait for at least 5 seconds (one export interval).

There are two ways you can verify the setup:

• By using the terminal and checking that Claude Code is sending the metrics
• Checking the Monitoring status in the UI:
  1. Navigate to AI Agent Registry → Agents
  2. Select your agent and open the Aliases tab
  3. Confirm the alias shows Monitoring: Active

Verifying that Claude Code is sending the metrics

1. Open the terminal and run the command: ps aux | grep -E "^\S+\s+[0-9]+.*claude" | grep -v grep
2. Kill any running processes by entering the command pkill -f "^claude$" where ^claude$ inserts the session number
3. Add the below debug config in the claude/settings.json file

{
"env": {
   "CLAUDE_CODE_ENABLE_TELEMETRY": "1",
   "OTEL_METRICS_EXPORTER": "otlp",
   "OTEL_EXPORTER_OTLP_PROTOCOL": "http/json",
   "OTEL_EXPORTER_OTLP_METRICS_ENDPOINT":  "https://agentcontroltower.boomi.com/metric-ingestion/v1/boomi_productmanagement-YXXXXF/otlp/public/metrics",
   "OTEL_EXPORTER_OTLP_HEADERS": "Authorization=Basic <base64-token>,X-Alias-Id=<alias-id>,Origin=https://claude.ai",
   "OTEL_RESOURCE_ATTRIBUTES": "providerType=CUSTOM_PROVIDER,operation=InvokeAgent,promptType=Interactive",
   "OTEL_METRIC_EXPORT_INTERVAL": "5000",
   "OTEL_EXPORTER_OTLP_METRICS_TEMPORALITY_PREFERENCE": "delta",
   "OTEL_LOG_LEVEL": "debug"
 }
}

4. Run Claude using the command claude --debug
5. In a second terminal, run the command tail -f ~/.claude/debug/latest | grep -i "telemetry\|exporter\|otlp\|metric"

The logs take a couple of minutes to compile.

Alternatively, if your Claude logs into a particular path, you can obtain the logs by using the path under "Debug mode enabled with the logging path". In a second terminal, run the command tail -f ~/.claude/debug/logging-path.txt | grep -i "telemetry\|exporter\|otlp\|metric"

The logging path is found as you open Claude, under "Debug mode enabled".

A successful metric flow response returns:

[DEBUG] BigQuery metrics exported successfully

An error reponse returns:

[ERROR] [3P telemetry] OTEL diag error: {"message":"PeriodicExportingMetricReader: metrics export failed (error OTLPExporterError:Forbidden)","originalLine":"2661",
"originalColumn":"42012","line":"2661","column":"42012","sourceURL":"/$bunfs/root/src/entrypoints/cli.js","stack":"Error: PeriodicExportingMetricReader: metrics export failed (error OTLPExporterError: Forbidden)\n    at _doRun (/$bunfs/root/src/entrypoints/cli.js:2661:42012)\n    at processTicksAndRejections (native:7:39)","name":"Error"}

Possible error responses:

Log Message	Cause	Fix
Agent alias <id> not found	The X-Alias-Id value is wrong or does not exist	Verify the alias ID in the AI Agent Registry
Alias does not belong to the specified account	Alias belongs to a different account	Use the alias ID from your account
Empty resourceMetrics in OTLP payload	Claude Code sent an empty payload	Verify CLAUDE_CODE_ENABLE_TELEMETRY=1 is set
HTTP 400 Bad Request	Malformed JSON or missing required header	Check OTEL_EXPORTER_OTLP_PROTOCOL=http/json
HTTP 401 Unauthorized	Invalid API token or incorrect Base64 encoding	Re-encode the token credential string
