Viewing source attachments
The Sources page allows you to easily see every model associated with a source.
Source statuses
A dot next to the domain indicates the status of data loading into the deployed model. You can load data from the deployed model’s repository page. A source attachment with a green status indicates that the initial loading of source data into the repository was successful.
If you clear model data and reset sources for load testing, the source status is set back to gray. In the Repositories page > deployed model click the gear icon and select Enable Initial Load to load data again.
| Status Color | Meaning |
|---|---|
| Gray | Neither loaded nor enabled for loading |
| Blue | Initial Load mode is enabled |
| Green | Loaded and in a normal, operating state |
| Red | Loaded but an error occurred in the processing of a source record update or the propagation of a request on the channel |
Procedure

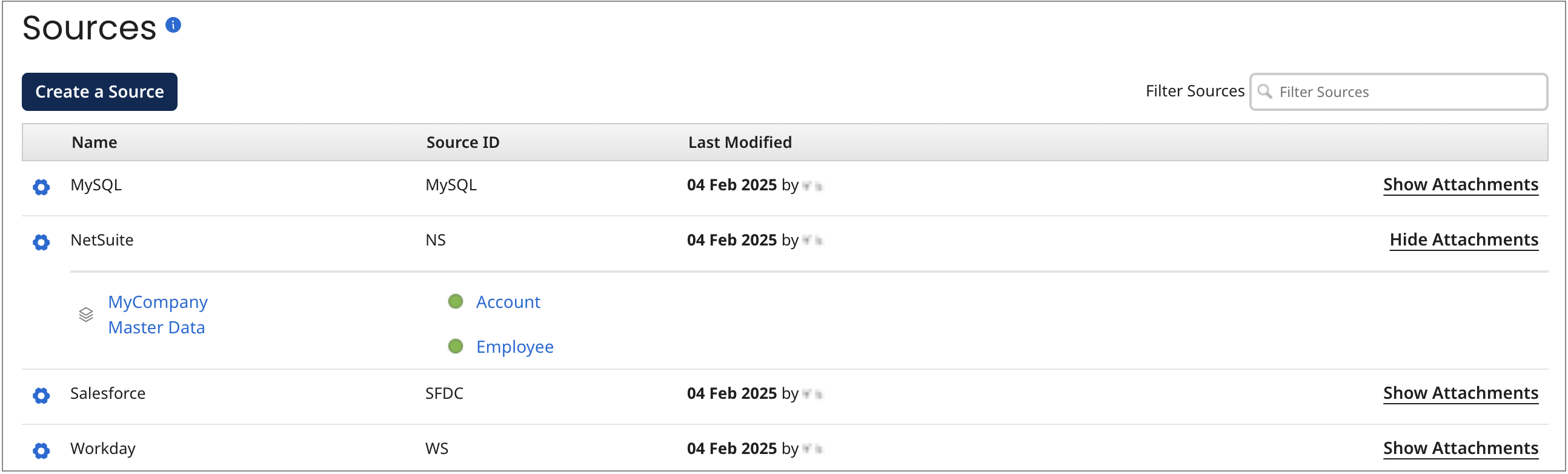

- Navigate to the Sources page.
- Select Show Attachments next to the source.
- The repository name is listed, followed by the model name. Select the repository or model link to jump to the Repositories screen to view additional information about the model’s source configuration.
Next steps: View a model’s source configuration.
