EDI profile’s Options tab

Updated

Use the Options tab to configure the EDI transaction type you are integrating.

Standard

Selects the standard for the transaction type.

  • EDIFACT
  • HL7
  • ODETTE
  • TRADACOMS
  • X12
  • User Defined - Select to create a custom EDI document profile

For more information about the defined standard types, refer to EDI standards

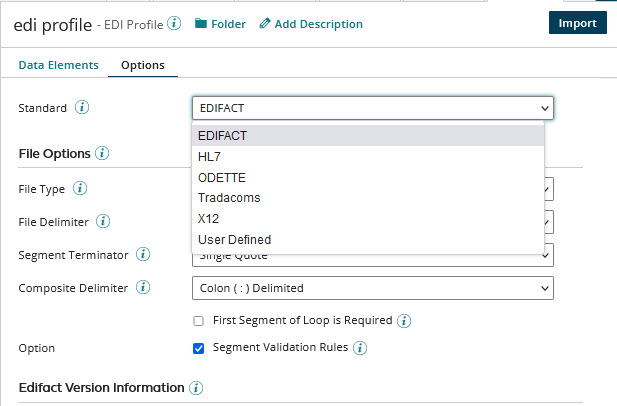

File options

The File Options section is nearly the same for each standard. It controls how documents are read and written.

The following options appear for every standard:

  • File Type - Choose Delimited or Data Positioned.

    • Delimited: Data elements are separated by a specific character.
    • Data Positioned: Data elements are defined by a start column and a length.
  • Pad Character - Available for Data Positioned files. The character used to pad empty spaces.

  • File Delimiter - Available for Delimited files. The character that separates elements.

  • Segment Terminator - Available for Delimited files. The character that ends each segment.

  • Composite Delimiter - Available for Delimited files. The character that separates components of a composite element.

Standard-specific file options

The following options appear depending on the selected standard:

  • Sub-Composite Delimiter - Available for Delimited files when the standard is HL7.

  • Repeat Delimiter - Available for HL7 when Enhanced Composites is on. The character that separates repeating data elements.

  • Enhanced Composites - Available for HL7. When on, composite elements display in a hierarchical tree. See [LINK: Enable HL7 enhanced composites]. Prerequisite: The runtime must have the custom property com.boomi.container.useExtendedEDIParsing set to true. If it is not set, the profile is downgraded to legacy behavior, which affects mandatory and repeating settings.

  • Disable Escape - Available for HL7 when Enhanced Composites is on. Controls whether special characters are escaped globally. When off, you can change escaping for each element. See [LINK: HL7 enhanced composites].

  • First Segment of Loop is Required - Available for EDIFACT. If selected, the first segment in a loop must be present when the segment's Mandatory option is selected. [CONFIRM: Is this option available for ODETTE? The Options tab currently says EDIFACT only.]

  • Segment Validation Rules - Available for X12, EDIFACT, and ODETTE. When selected, you can define segment validation rules on the Data Elements tab, and the rules apply to documents. When cleared, the rules are not applied, but their definitions are kept.

note

When segments are imported into an EDI profile for which X12 is the selected Standard, rules defined in the standard for the selected Version are automatically added to the imported segments.

Version information

Each standard has a section for version information. The section is available only for that standard.

EDIFACT version information

Choose the EDIFACT version and message type.

  • Choose Version - Opens the Select Transmission dialog. Select the version, then the message type, and click Save. Message types are version-specific.

  • Message Type - Shows the selected message type.

  • Version - Shows the selected version.

  • Release - Shows the EDIFACT release number.

  • Controlling Agency - Shows the agency that defined the message type and version.

Supported versions: D00A, D00B, D01A, D01B, D01C, D02A, D02B, D03A, D03B, D04A, D04B, D05A, D05B, D06A, D06B, D07A, D07B, D08A, D08B, D09A, D09B, D10A, D10B, D11A, D11B, D12A, D12B, D13A, D13B, D14A, D14B, D15A, D15B, D16A, D16B, D17A, D90.2, D91.1, D91.2, D92.1, D93.2, D93A, D94A, D94B, D95A, D95B, D96A, D96B, D97A, D97B, D98A, D98B, D99A, D99B.

HL7 version information

Choose the HL7 version, message type, and transmission type.

  • Choose Version - Opens the Select Transmission dialog. Select the version, then the message type, then the transmission type, and click Save. If Save is inactive, the type is not available for the version.

  • Description - Shows the description of the selected transmission type.

  • Message Type - Shows the selected message type.

  • Message Code - Shows the code for the selected message type.

  • Event Type - The real-world healthcare event type that caused the message to be generated.

  • Message Structure - Shows the message structure, determined by the selected message type.

  • Version - Shows the selected version.

Supported versions: 2.1, 2.2, 2.3, 2.31, 2.4, 2.5, 2.51, 2.6, 2.7.

ODETTE version information

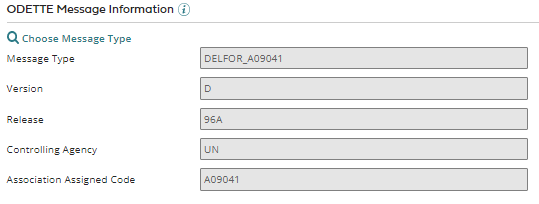

Choose the ODETTE message type.

  • Choose Message Type - Opens the Select Transmission dialog. Select the message type and click Save.

  • Message Type - Shows the message type name and the Association Assigned Code, separated by an underscore.

  • Version - Shows the message type version.

  • Release - Shows the ODETTE release number.

  • Controlling Agency - Shows the agency that defined the message type and version.

  • Association Assigned Code - Shows the ODETTE code.

TRADACOMS version information

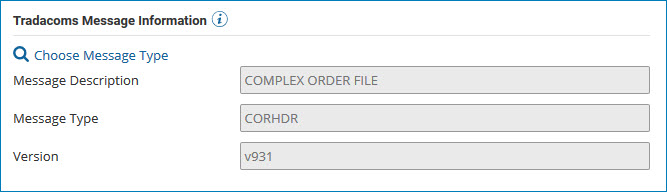

Choose the TRADACOMS message type.

  • Choose Message Type - Opens the Select Transmission dialog. Select the message type and click Save.

  • Message Description - Shows the description of the message type.

  • Message Type - Shows the message type name.

  • Version - Shows the message type version.

X12 version information

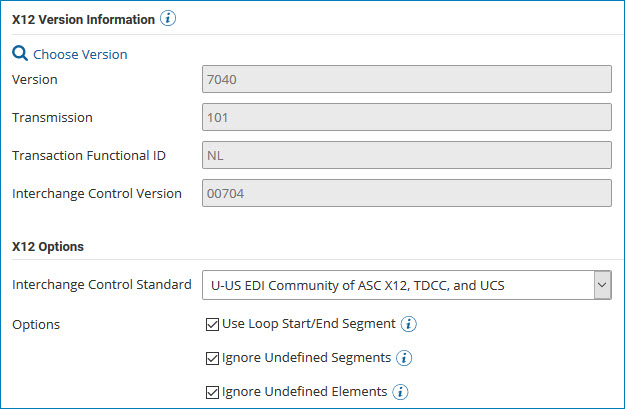

Choose the X12 version and transaction set. The X12 options are on the same tab.

  • Choose Version. Opens the Select Transmission dialog. Select the version, then the transaction set, and click Save. Transaction sets are version-specific.

  • Version - Shows the selected X12 version number.

  • Transmission - Shows the ID of the selected transaction set.

  • Transaction Functional ID - Shows the selected transaction set's functional group ID.

  • Interchange Control Version - Shows the version number of the interchange control segments.

Supported versions: 2001, 2002, 2003, 2040, 3010, 3020, 3030, 3040, 3050, 3060, 3070, 4010, 4020, 4030, 4040, 4050, 4060, 5010, 5010 HIPAA, 5020, 5030, 5040, 5050, 6010, 6020, 6030, 6040, 6050, 7010, 7020, 7030, 7040, 7060, 8010

X12 options

  • Interchange Control Standard - Configures the control standard defined in your X12 EDI specifications.

    • U-US EDI Community of ASC X12, TDCC and UCS
    • X-US EDI Community of ASC X12

The following check boxes are features of a previous integration platform version (version 3.x). They are listed for legacy support.

  • Use Loop Start/End Segment - If selected, loop start and loop end segments are added before and after every loop. This is not needed in most cases.

  • Ignore Undefined Segments - If selected, undefined segments are ignored and an error condition is not generated.

  • Ignore Undefined Elements - If selected, undefined elements are ignored and an error condition is not generated.

Refer to Configuring X12 options for more information.
