Use GraphQL connector

Using the GraphQL connector in a Flow

To use the GraphQL connector in a Flow, follow the below steps:

1. Drag a message step onto the Flow canvas.
2. The configuration panel for the message step is displayed.
3. Enter a name for the step in the Name field.

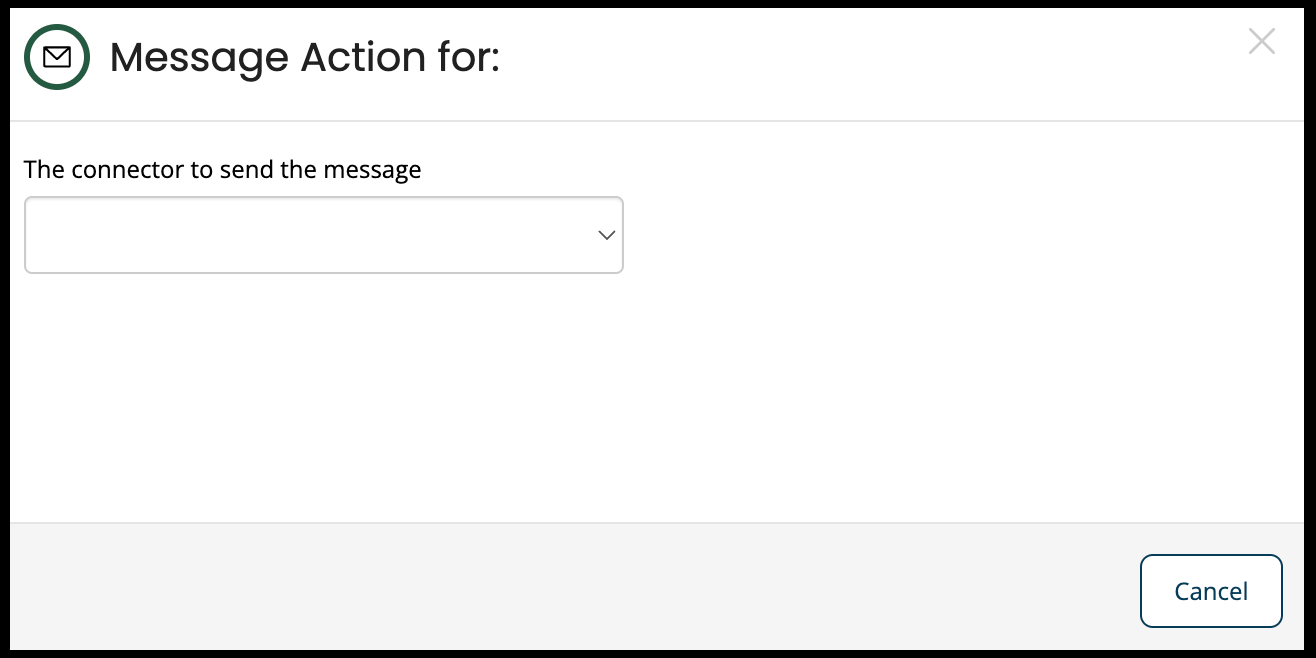

4. Click Add Message Action to add a message action.
5. Select the GraphQL connector that was just created by you, from the drop-down.

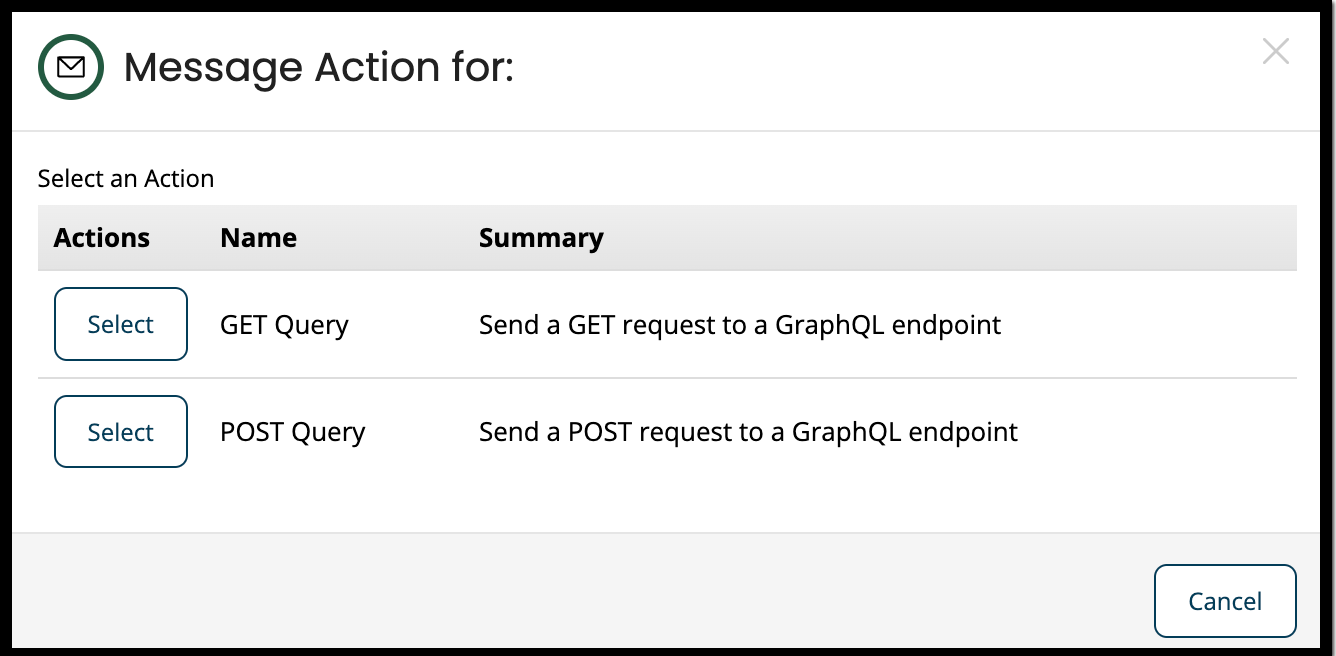

6. Select either of a query that you want request to a GraphQL endpoint:
   • GET request
   • POST request
7. After selecting the query action, select or create a new Value for the query:

   • Under Inputs, select or create a new Value for Query and Variable.

   • Under Output, select or create a new Value for Response, this can either be an object or a list.

     note

     You can add variables separately in the request, or build it up within the query value.

8. Save and link up the message step to the Flow.
