Configure GraphQL connector

Updated 17 June 2026

Prerequisites

  • You have a Boomi Flow account and can log in to the Flow interface.
  • You have access to a GraphQL API endpoint.
  • You have configured a Boomi Integration Account. Refer to GraphQL connector.

Configuring GraphQL connector

Follow the steps to configure the GraphQL connector:

  1. Navigate to the Connectors screen.
  2. Provide a name to your GraphQL connector under Name, the URL field is a pre-populated input.
  3. Select the authentication provider under the Authentication field. Currently, only Boomi Integration Auth. GraphQL connector configuration panel showing the Authentication field with Boomi Integration Auth selected
  4. Select the Integration Account that we just created as a part of prerequisite.
  5. Click Retrieve Connector Configuration Data.

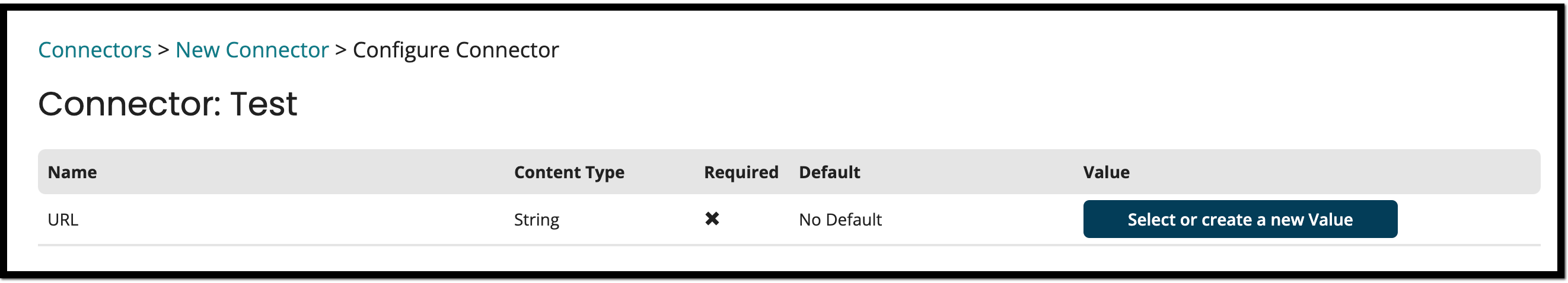

  6. Add a value for the URL as you are calling an API through this URL. For more information, refer to Select or create a new Value. GraphQL connector value selection screen for the URL field
  7. Click Install.
  8. Click Save Connector.
