Using attributes to style components

warning

The content on this page is outdated and will not receive updates. For the most up-to-date functionality, refer to Setting up and managing flows.

You can use attributes to apply CSS classes to page components.

Default player runtime

Attributes are not used to apply CSS classes when running flows with the default player.

Instead, you can add multiple space-delimited CSS classes to a component using the CSS Class field on the component configuration panel. To learn more about applying CSS to your flow players, see CSS reference.

Default legacy player runtime

When running flows with the default legacy player, you can add a generic 'classes' attribute to components, allowing you to apply CSS classes directly.

These styles can then be applied at runtime, either directly in the player or by linking to a stylesheet, in order to modify the appearance/behaviour of the component.

The string value for the attribute can consist of multiple entries separated by a space character to build up the CSS class selector. To learn more about applying CSS to your flow players, see CSS reference.

note

Full stop characters should be removed from the attribute value. For example, to reference a .bluetext style, only the text 'bluetext' would be entered as the value for the attribute, i.e. the full stop character has been removed.

Applying a single CSS class:

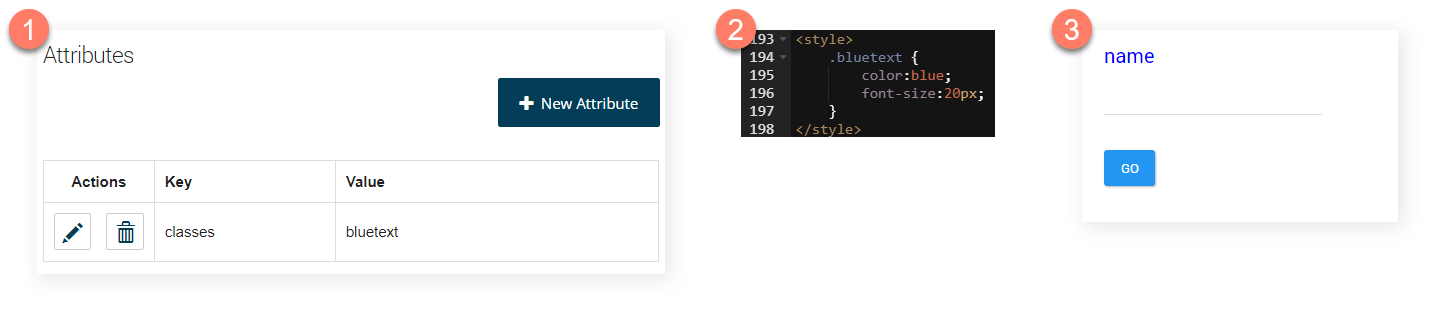

Example attribute CSS

  • A classes attribute is added to a component on a page layout with a value of 'bluetext'. Step 1

  • In a custom player, a .bluetext style is added to show text as blue and increase the font size.Step 2

  • When the flow is run using the custom player, the CSS in the player is applied to the component.Step 3

Applying multiple CSS classes:

A classes attribute is added to an outcome button component on a page layout with a value of 'btn-lg btn-outline CustomButton'. This applies three CSS classes to the outcome button:

  • The btn-lg part of the value makes the outcome button large (applying the Bootstrap btn-lg CSS class).

  • The btn-outline part of the value makes the outcome button outlined (applying the Bootstrap btn-outline CSS class).

  • The CustomButton part of the value applies a CustomButton CSS class that has been added to the player.
