Using API keys

This worked example shows how API keys can be generated and used to authenticate and make requests to the API.

Before you begin

Before using this worked example, ensure that you are familiar with the following concepts and procedures:

• Generating an API key in Flow. Refer to Generating an API key.

• Making requests to a REST API, for example using Postman. Refer to Postman.

• Using the REST API. Refer to the Flow API documentation for details on endpoints and methods.

Generating an API key

In this worked example, a user wants to make requests to the API, using an API key that they have generated.

The key will allow the user to make requests against their tenant. The tenant is named "Example", and has a tenant ID of "b70ef1d6-edc9-4481-94b9-d81g126e32d1".

1. In Flow, a new API key is generated in the Generate a new API key section on the User Settings page.

   • Key Name: The API key is named "API Key".
   • Tenant: The "Example" tenant is selected.

2. The Show link in the Key column is clicked to display the API key.

3. The API key value is copied from the Key column. This key value is required when adding the x-boomi-flow-api-key authentication header.

Making a request to the Flow API

In this worked example, the user sends a request to the API to obtain information about which flows exist in their tenant, using the https://flow.boomi.com/api/draw/1/flow endpoint.

The user makes the request using the Postman API tool.

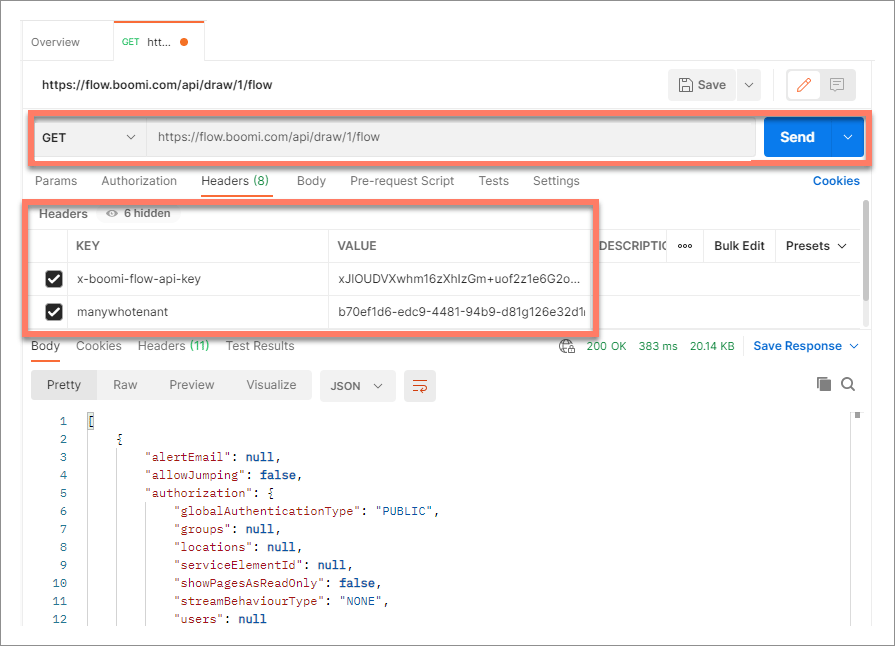

1. In Postman, a new request tab is opened.

2. The https://flow.boomi.com/api/draw/1/flow API endpoint is entered into the request URL field.

3. The GET method is selected from the method drop-down menu.

4. If the request was sent at this point it would fail, as no authentication details are included with the request.

   To authenticate the request using the API key, headers are added to the Headers tab.

   • An x-boomi-flow-api-key header key is added. The API key value that was copied earlier is pasted into the Value field for the header.

   • A manywhotenant header key is added, to specify which tenant the request should be made against. The "Example" tenant ID of "b70ef1d6-edc9-4481-94b9-d81g126e32d1" is pasted into the Value field for the header.

5. The user clicks Send to perform the request, resulting in a successfully authenticated request, using the generated API key.

   The response data contains the metadata for all the flows that exist in the tenant.
