Loading data from Integration into Flow

Updated 23 July 2026

Prerequisites

• You have configured the Boomi Integration Service connector in Flow. Refer to Flow and Integration.
• You have a Flow with a database load step.

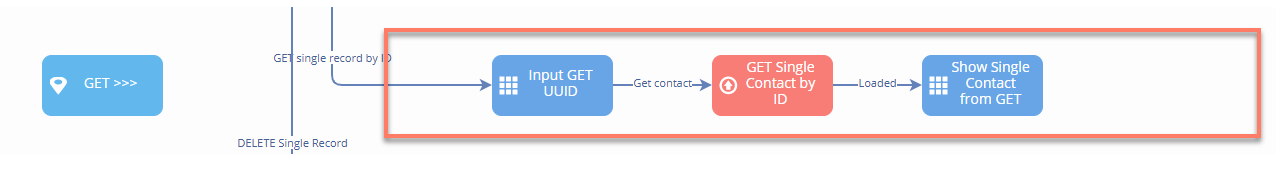

This section of the Flow uses a Database Load step to GET data from Integration.

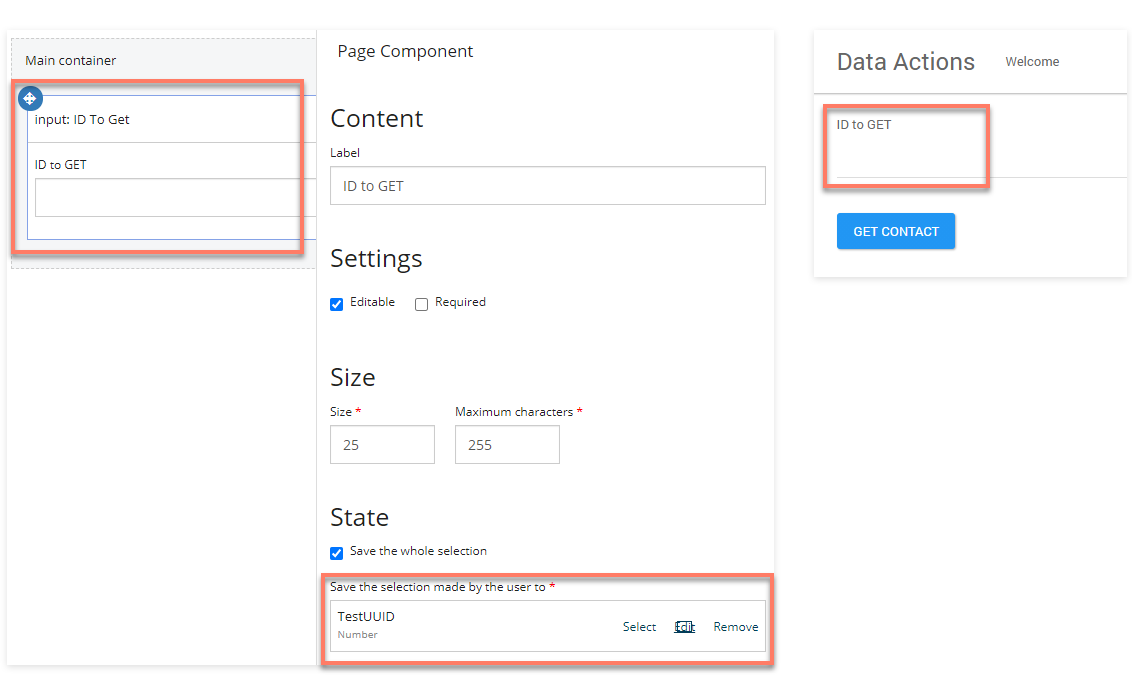

1. The 'Input GET UUID' page step presents the user with an input field to enter the UUID of the contact whose details Flow will retrieve and display. Flow links the data entered into the input field to a 'TestUUID' numeric value and stores it there.

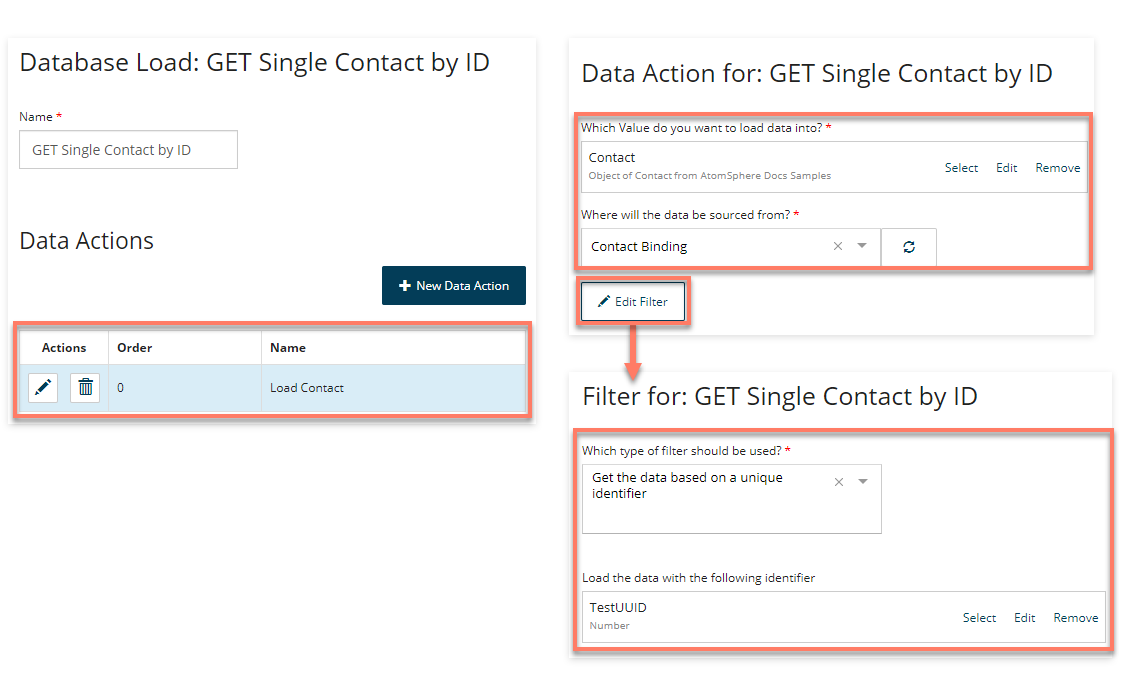

2. When the user has entered a UUID and clicks the Get Contact outcome, the Flow progresses to the 'GET Single Contact by ID' Database Load step. Here, a Data Action has been set with a filter to load the 'Contact' object value with data from the database using the UUID value entered by the user (the 'TestUUID' numeric value).

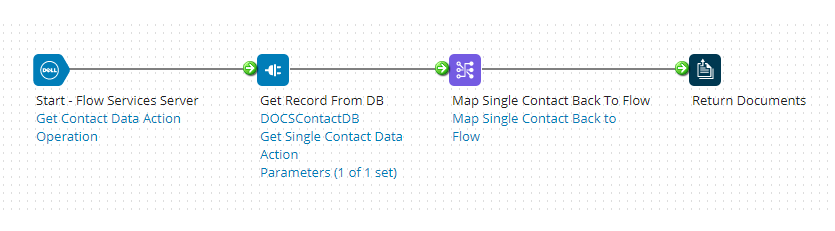

3. The service passes this request into Integration, initiating the Get Process assigned to the Flow Service Data Action. In this example, the process retrieves the filtered data record from a database, for example:

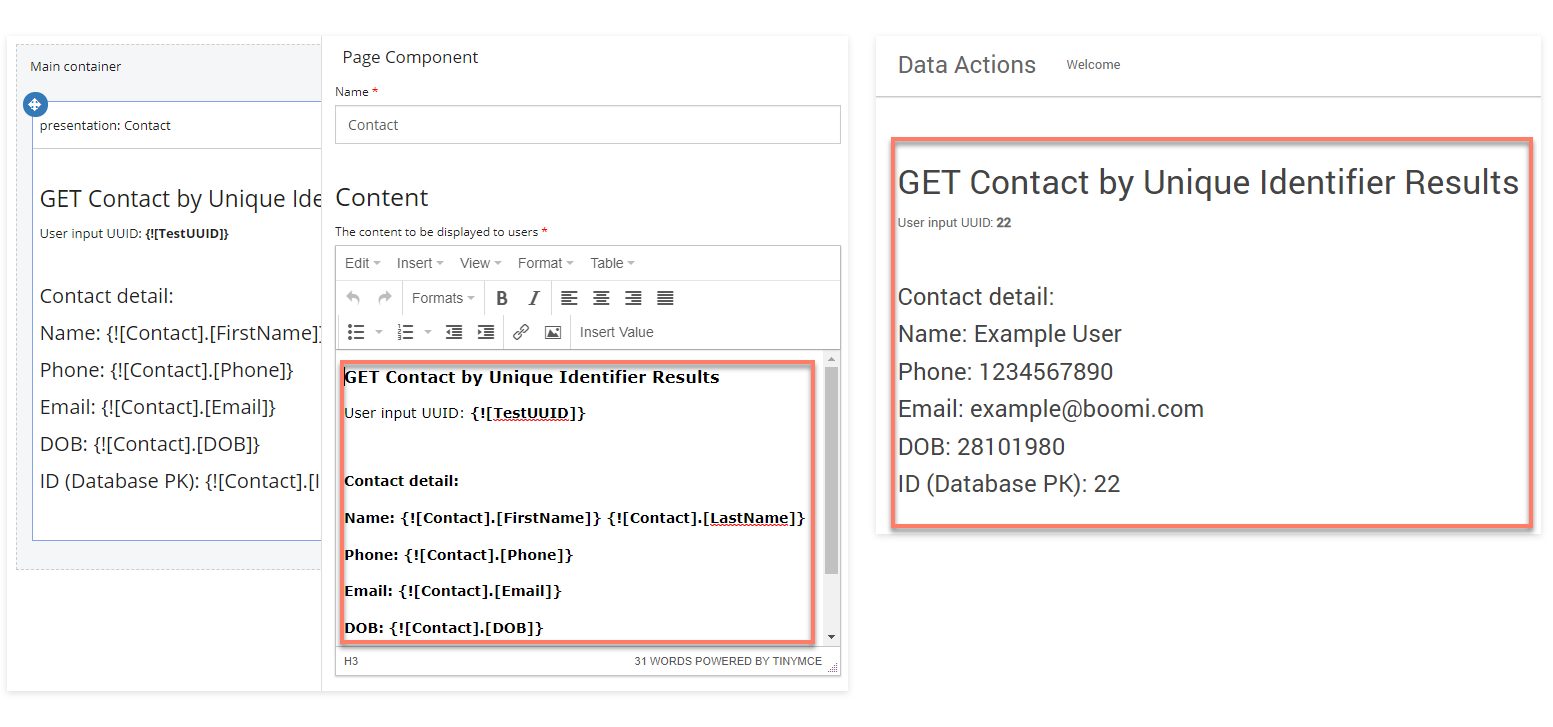

4. Now that the Data Action has loaded the matching database record into the 'Contact' object value, the Flow proceeds to the 'Show Single Contact from GET' page step that displays the data loaded from Integration.
