Deleting data from Integration using Flow

Prerequisites

• You have configured the Boomi Integration Service connector in Flow. Refer to Flow and Integration.
• You have a Flow with a database delete step. Refer to An example workflow for using Integration with Flow.

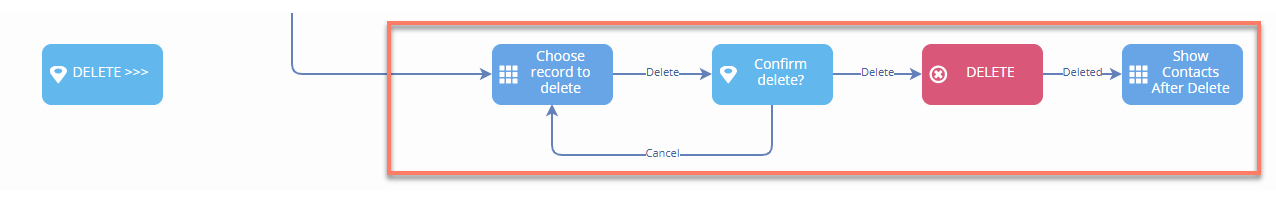

This section of the Flow uses a Database Delete step to delete data from Integration.

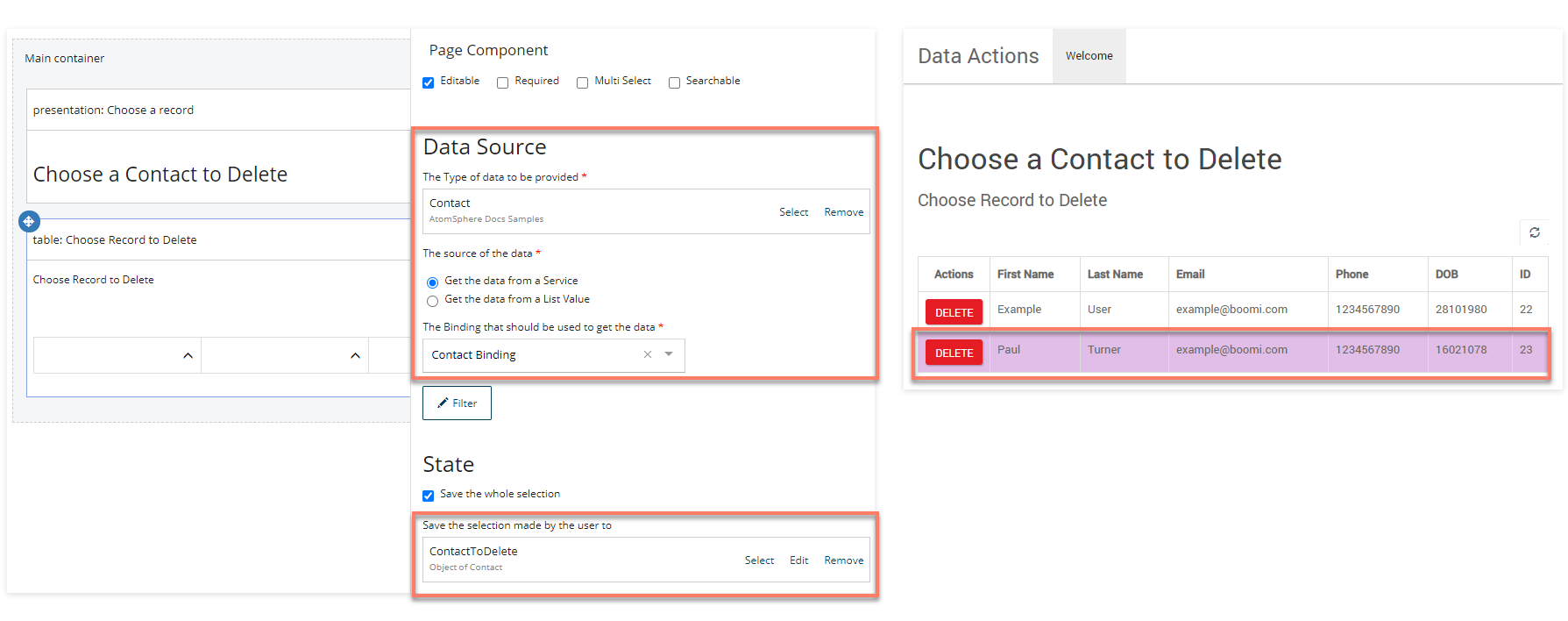

1. The 'Choose record to delete' page step presents the user with a table populated with the contact entries entered into the database (loaded directly from the connector).

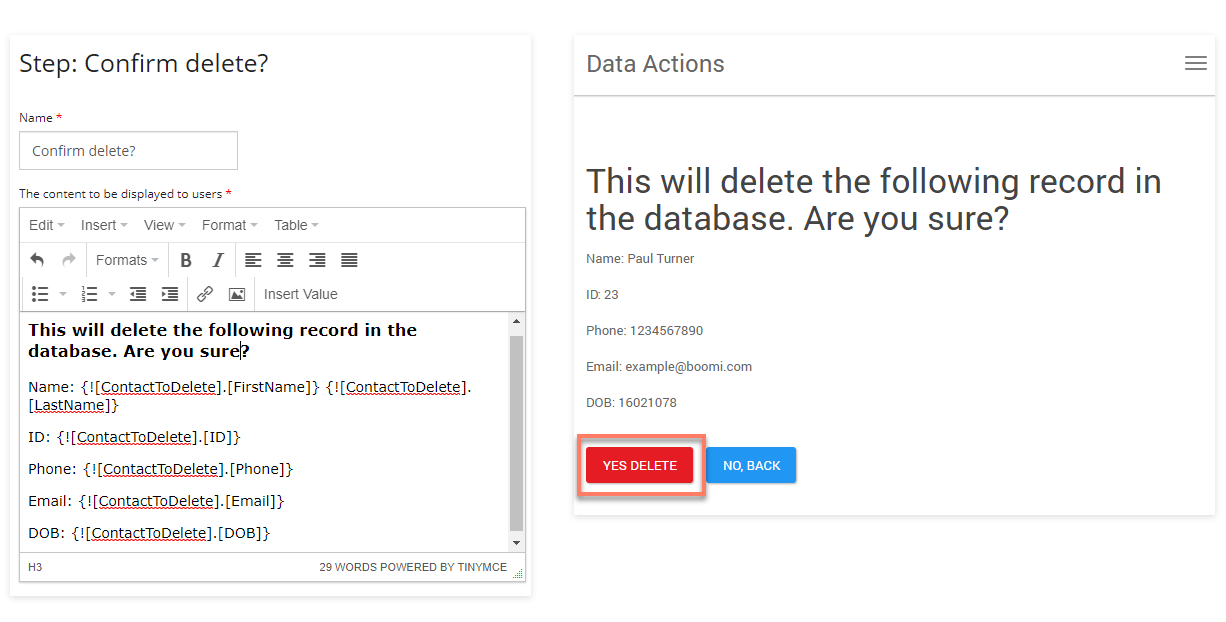

2. When a user selects a row in the table and clicks Delete, Flow stores the user selection in a 'ContactToDelete' object value. The Flow then progresses to the 'Confirm delete' step, displaying a confirmation screen containing the details of the selected record (shown using the contents of the 'ContactToDelete' object value).

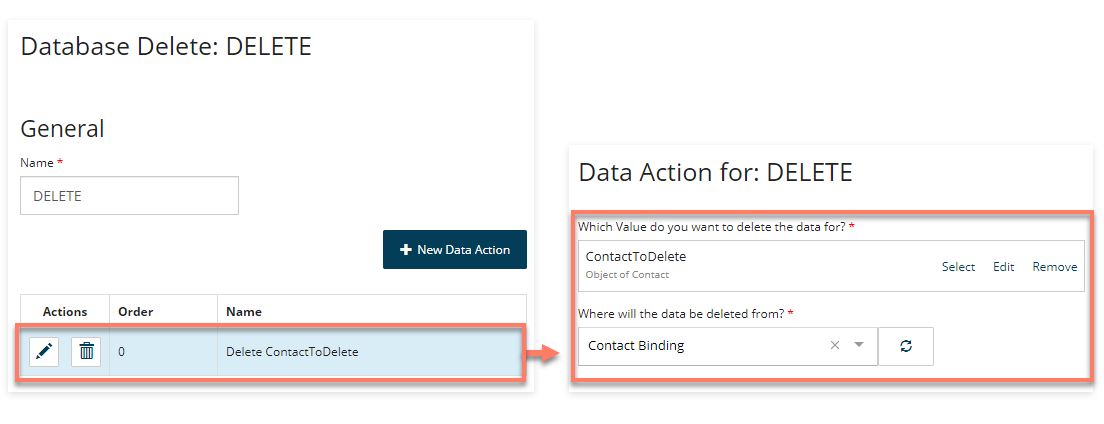

3. If the user clicks the Yes Delete outcome, the Flow progresses to the 'DELETE' Database Delete step. Here, a Data Action has been set up to pass the stored 'ContactToDelete' object value data of the 'Contact' type.

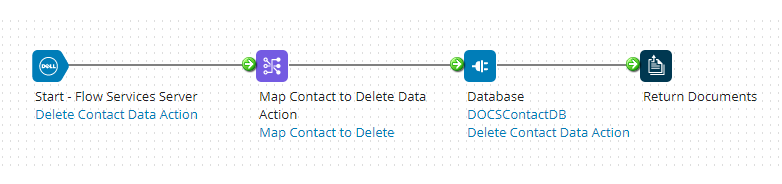

4. The service passes this request into Integration, initiating the Delete Process assigned to the Flow Service Data Action. In this example, the process deletes the selected single record from a database, for example:
