Message steps allow the sending and receiving of requests to third-party messaging . These can be used to configure both incoming and outgoing messages.

Overview

A message step can be added to a flow to send and receive message requests.

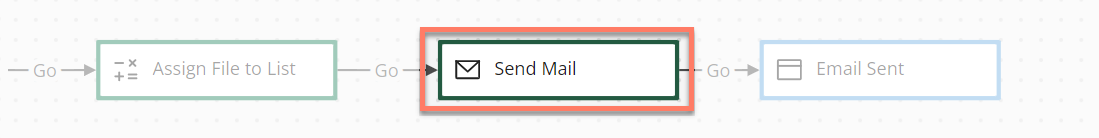

The message step

A message step uses message actions to define the interface of inputs/outputs when calling against each message. Adding message actions allows you to map values in a flow to the inputs and outputs specified by a message step.

For more information, refer to Adding Message Actions to a step.

Adding a message step

To add and configure a message step:

  1. Drag a message step onto the flow canvas.
  2. The configuration panel for the message step is displayed.
  3. Enter a name for the step in the Name field.
  4. Click New Message Action to add a message action.
  5. Configure the new message action by selecting the connection that supports the action you want to perform from the drop-down containing all connections installed in the tenant and imported into the flow. Then select the required action to configure the message. Refer to Adding Message Actions to a step.
  6. Add and link outcomes to the message step as required to define the routing logic for the message step.

Worked examples using a message step

In the following worked examples, the Email connector is used to send an email message from a flow, using a message step and message actions to configure the behavior of the actions taken when sending an email:

Adding message actions

Message actions can be added to a message step.

Adding an outcome

Outcomes can be added to a message step.

Adding listeners to a step

Listeners can be added to a message step.

Adding feedback to a step

Feedback can be added to a message step.

Adding comments to a step

Comments can be added to a message step.
