SAP Event Processing

Process EDA subscriptions

Transaction: /IXBX/ZBX011 or /IXBX/EVENT_PROCESS

Subscription and Receiver filters: These let you control which subscriptions and receivers are processed during execution. All that are relevant for the new events will be updated in the Boomi for SAP dispatch layer, irrespective of the filter applied.

Destination data: This serves as a prefix to the generated path for the topic. For example, if the topic path is /TOPIC, it already contains a leading /, so there is no need for a trailing / in this field.

Processing options

The description of the Processing Options are as follows:

  • Incl. custom Change Pointers: This option allows the processing of Change Pointer subscriptions. When selected, a new select option becomes available.

  • Change Pointer filtering: This feature enables the filtering of message types to be processed, based on those marked as relevant for Boomi for SAP. Including new events, this option processes Change Pointer subscriptions for new events in SAP only.

  • Incl. custom Business Events: This feature processes Boomi for SAP Business Events. These events are managed by handlers based on the /IXBX/BI_EVENT_HANDLER_STATIC interface. Only one real-time handler can be processed per objecttype/eventtype at a time.

  • Process batch events: This feature enables the batch processing of events for batch subscriptions.

  • Reproc failed real-time events: This option allows reprocessing real-time events that failed during the original processing. In this case, the topic prefix used for real-time /TOPIC is replaced with the provided Path prefix.

  • Max events: This specifies the maximum number of events for processing.

  • Include external value fields: This option extends the output data with external format values.

  • Max threads for parallel proc: This specifies the maximum number of threads that can be allocated for parallel subscription processing.

  • Server group: This specifies the server group for parallel subscription processing. You can choose from the provided list.

Process Event Clean Up

Transaction: /IXBX/ZBX012 or /IXBX/EVENT_CLEAN_UP

This transaction should be scheduled to run periodically as a clean-up process to remove events that have been successfully processed by all receivers. It can be compared to the clean-up process for SAP standard change pointer events. If the deletion of obsolete EDA event dispatch data is executed with Delete older than (days) = 0, the main event will be directly deleted instead of being marked for deletion in the next run.

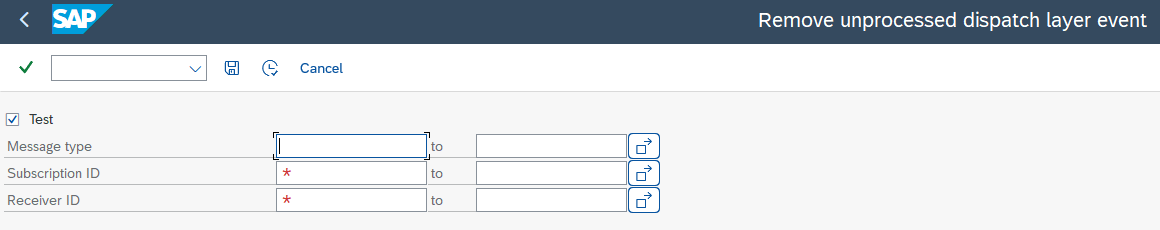

Process Dispatch Layer Clean Up

Transaction: /IXBX/ZBX013 or /IXBX/DISPATCH_CLEAN_UP

This transaction lets the removal of data generate for the dispatch layer that should not be sent. This can occur due to the deletion of a subscriber or receiver or changing pointer message types for Boomi for SAP settings.

Parameters

  • Test: This overviews the number of records found based on the filtering criteria. The table /IXBX/BDCP2_LINK can be analyzed using SAP standard transactions such as SE16.

  • Message Type: This allows for filtering based on the message type for which the event is created. The message type for Boomi for SAP business events is /IXBX/ZBX_EVENT

  • Subscription ID: This allows for filtering based on specific subscriptions.

  • Receiver ID: This allows for filtering based on specific receivers.
