Extract Data in Boomi Enterprise Platform

To import the SAP data source format into Boomi, configure Boomi to receive notifications when extractions occur, extract the data, and send it to another system.

If this is your account's first BW data extraction, you can download the example processes from Boomi's process library. However, if you already have a BW extraction in your account, proceed to configure Additional BW Processes.

To download from the Process Library:

  • Create a new folder to store the example process.
  • Click on the Browse Process Library button located on the screen's lower left-hand side.

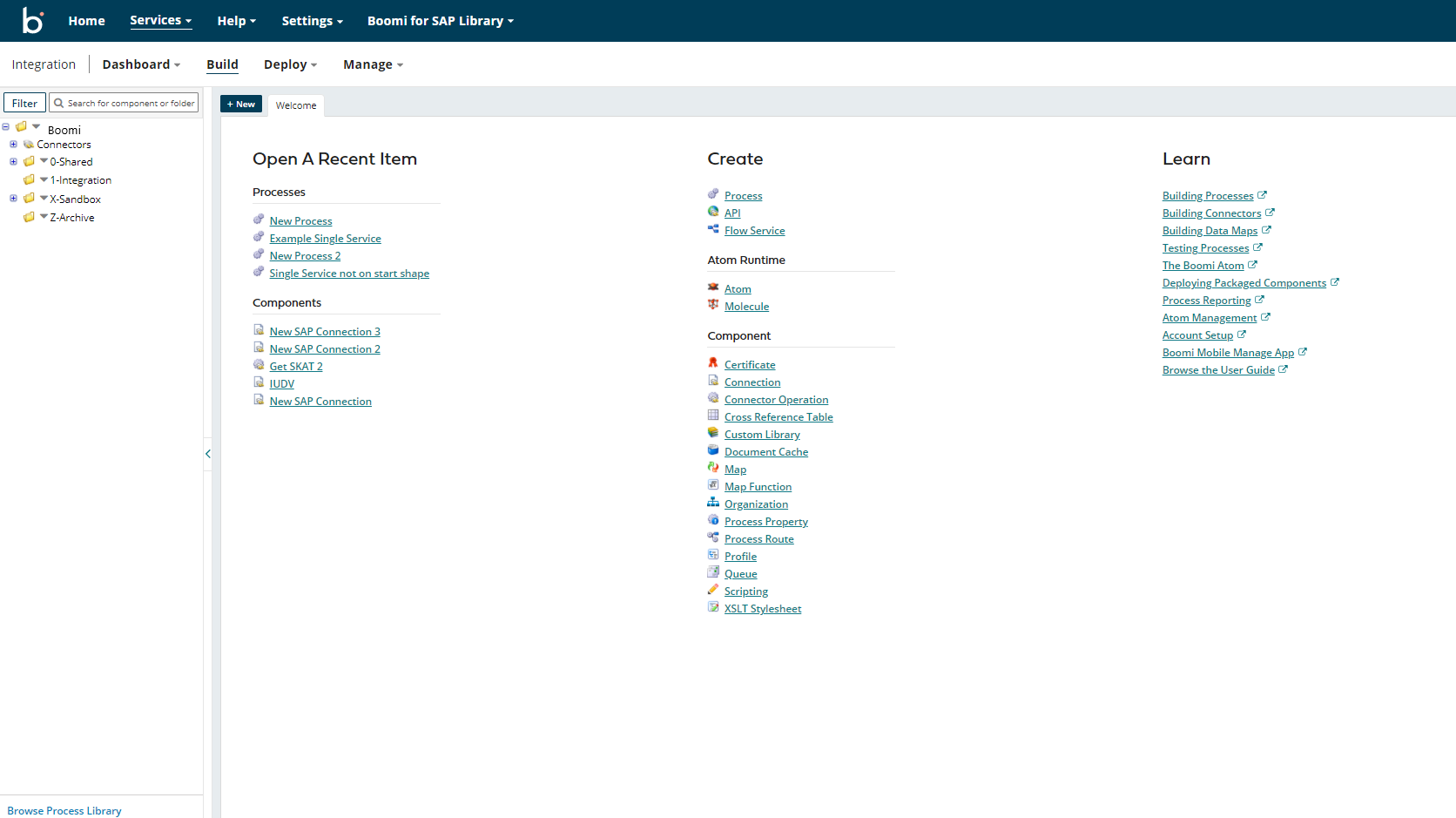

Browse Process Library button in Boomi platform

  • Search for Boomi for SAP in the process library.

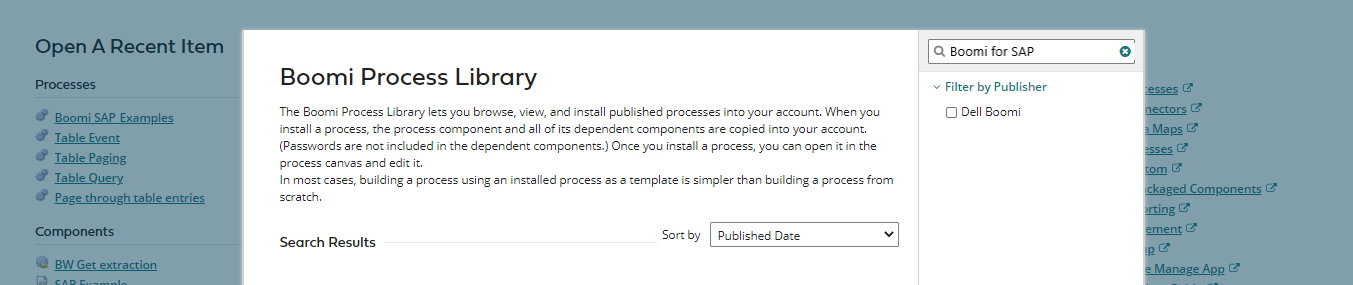

Boomi for SAP search results in process library

  • Select the Boomi for SAP Examples process and click on the Install button.
  • Choose your selected installation location and click the Install button.

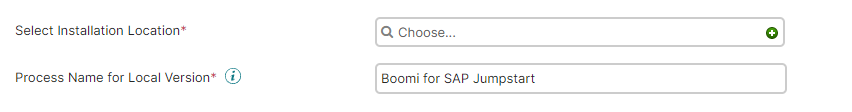

Install button for Boomi for SAP Examples process

  • After completing the above steps, you will now see five processes in the new folder in your account.

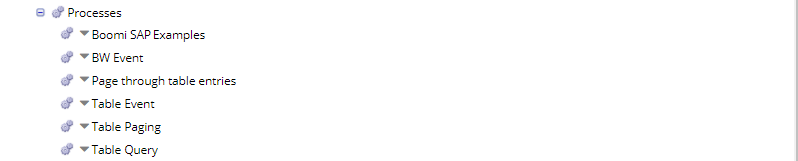

Five new BW processes in account folder after install

  • Double-click on the 'BW Event' process and use it as a foundation for your new BW extraction listener, as described in the Configure BW Extractor Process section below.

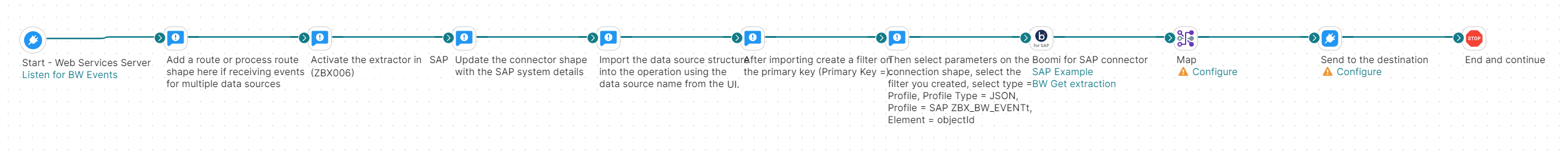

BW Event example process for extraction listener setup
