Payload Filter

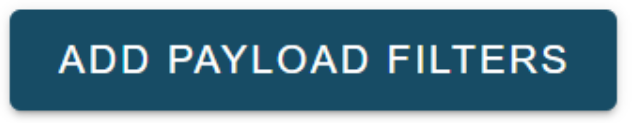

When the event mode is set to payload, the payload filter option is displayed.

When presented with the option to select tables in the table service used for payload data, the object class is the business object and remains a static value.

After selecting a table, you will have an option to choose a field for that table.

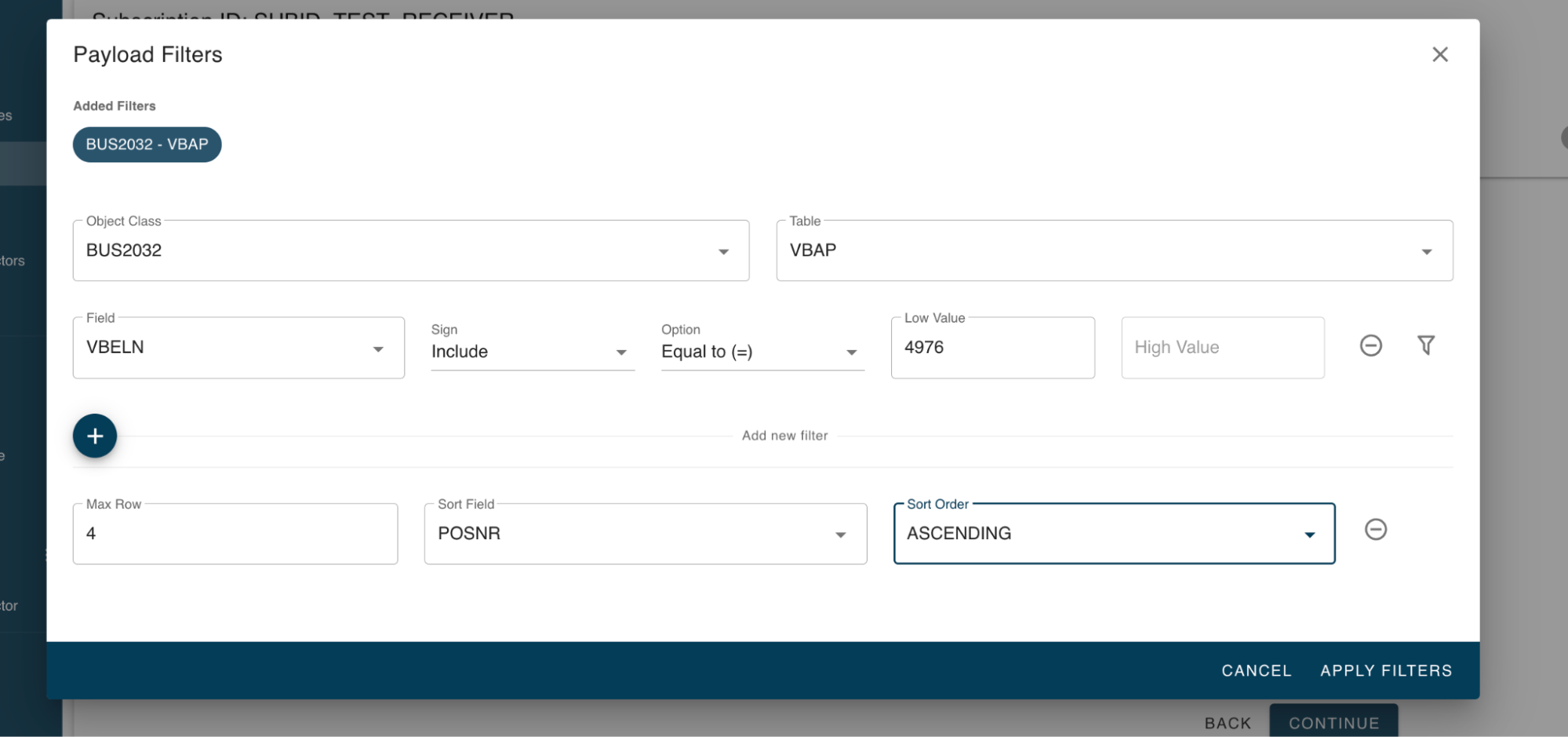

Once a column name is selected, the filtering options will become visible, such as sorting by ascending or descending order, or designating a maximum number of rows to be returned.

You can create advanced filters or add additional field filters.

Advanced filters function similarly to change pointers.

The list is displayed again when you add a field, with any fields that already have filters now unavailable. Here, the BANKL is disabled, since this filter has already been added.

The BANKL filter has an advanced filter icon on the right because it has multiple rules. For all fields, there is a minus icon to remove a field if the filter rule is no longer needed.

If a filter is not fully defined, the Add/Apply filter button is deactivated. The rule for a field must be fully defined or removed if not required.

The overview of implemented events provides some event details but does not include the filtering aspect.

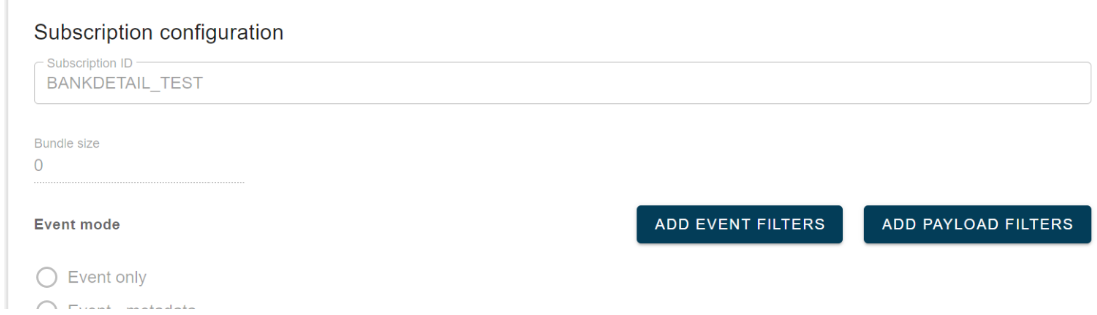

To view the filtering details, go onto the View/edit mode, go to the Subscription configuration sub-page, and click the Event Filters or Payload Filter button.
