Chaining of Processor Using Chain Adapter

Processors can be chained using a chain adapter in an untethered environment and in a tethered environment.

Chaining Processors in an Untethered Environment

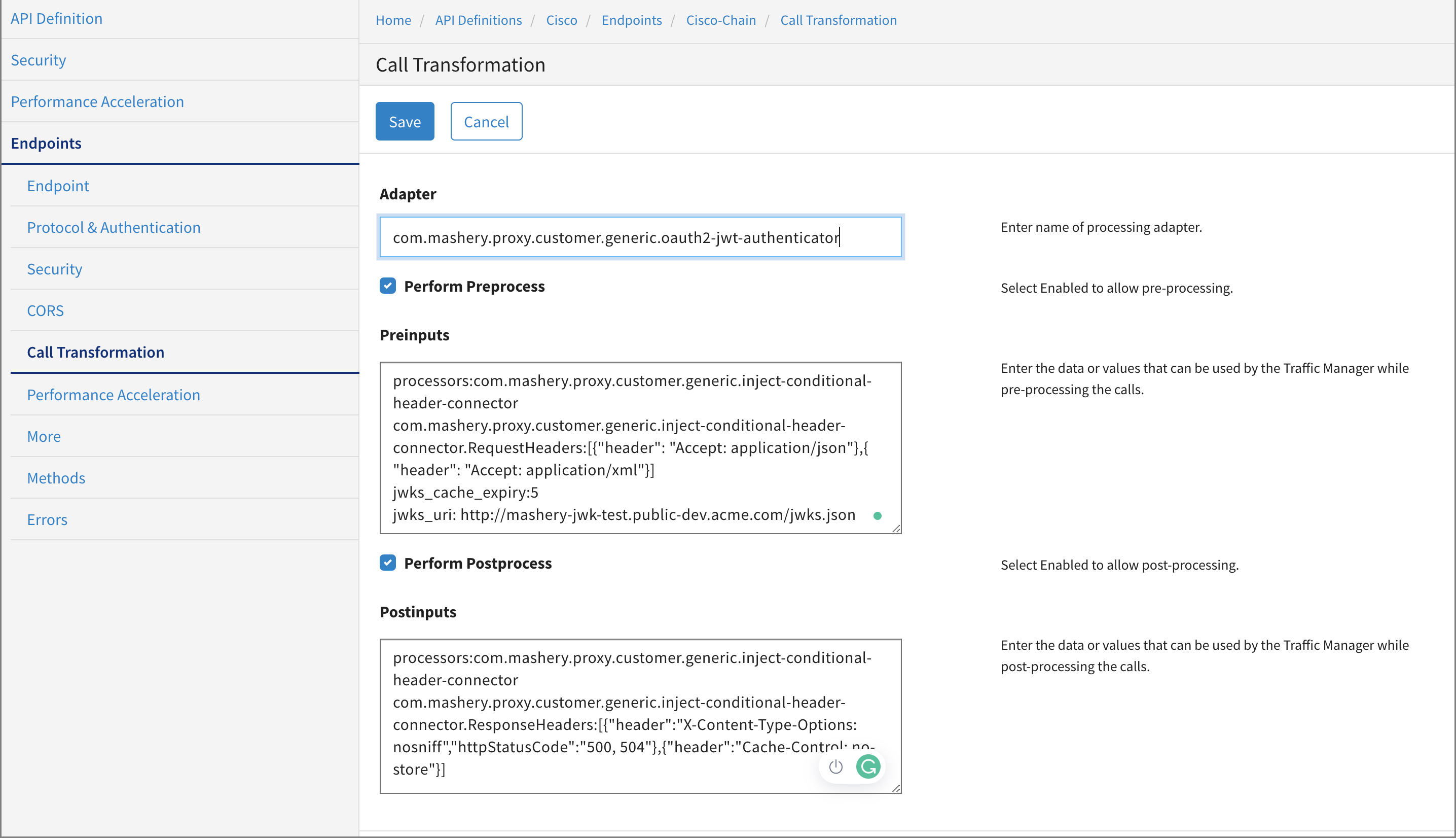

  1. In the Configuration Manager, click the Endpoints tab and then click Call Transformation.

  2. In the Adapter field, input the name of the chain adapter. For example, com.mashery.proxy.customer.generic.oauth2-jwt-authenticator.

  3. As per requirement, select the checkbox for Perform Preprocess/Perform Postprocess or both.

  4. In the Preinputs field, type the processors to be chained. The name of the processor is the processors bean name. The syntax is:

    processors:PROCESSOR1,PROCESSOR2

    For example:

    processors:com.mashery.local.MasheryCustomProcessorOne,com.mashery.local.MasheryCustomProcessorTwo

    You can also provide configuration data as input. The syntax is:

    PROCESSOR1.parameter:value
    PROCESSOR1.parameter:value
    PROCESSOR2.parameter:value
    PROCESSOR2.parameter:value
note

  • In the pre-input configuration, there must not be more than one key with the name "processors".

  • The processors to be chained must be input as a comma-separated list.

  1. In the Postinputs field, input the name of the adapter that the traffic manager can use to post-process the calls, then click Save.

    • The input syntax for the Postinputs fields must be the same as that of the Preinputs field.

    • If you opt for only Perform Postprocess, the input for Postinputs field must be as follows:

      processors:com.mashery.local.MasheryCustomProcessorOne,com.mashery.local.MasheryCustomProcessorTwo

      and

      PROCESSOR1.parameter:value
      PROCESSOR1.parameter:value
      PROCESSOR2.parameter:value
      PROCESSOR2.parameter:value

Chaining Processors in a Tethered Environment

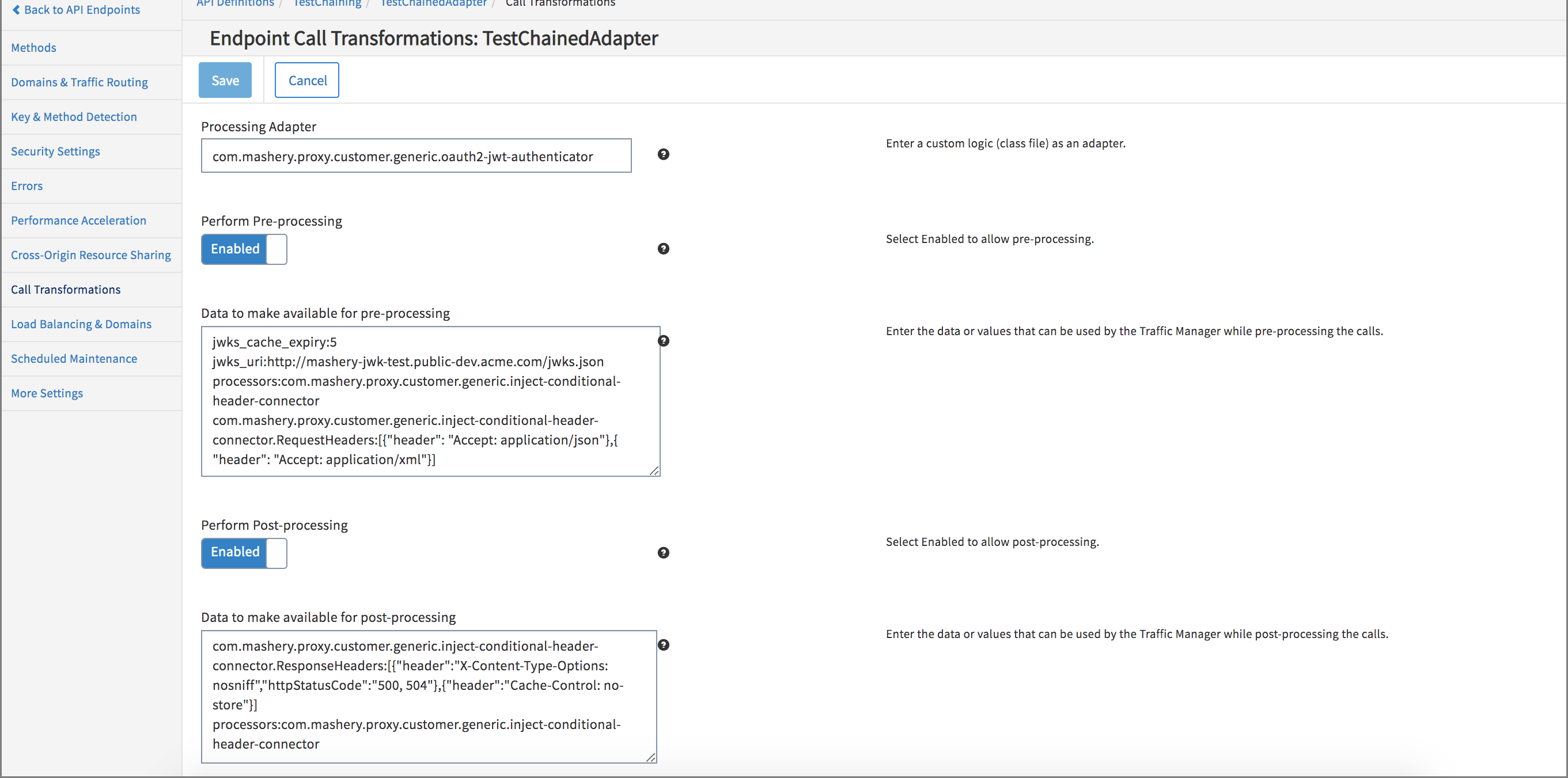

The process for chaining processors in a tethered environment is the same as that of untethered. The interface of the control center appears as shown below:

What to do next

To test the changes, use the endpoint and make a traffic call.
