Design and Implementation

Sequence Diagram

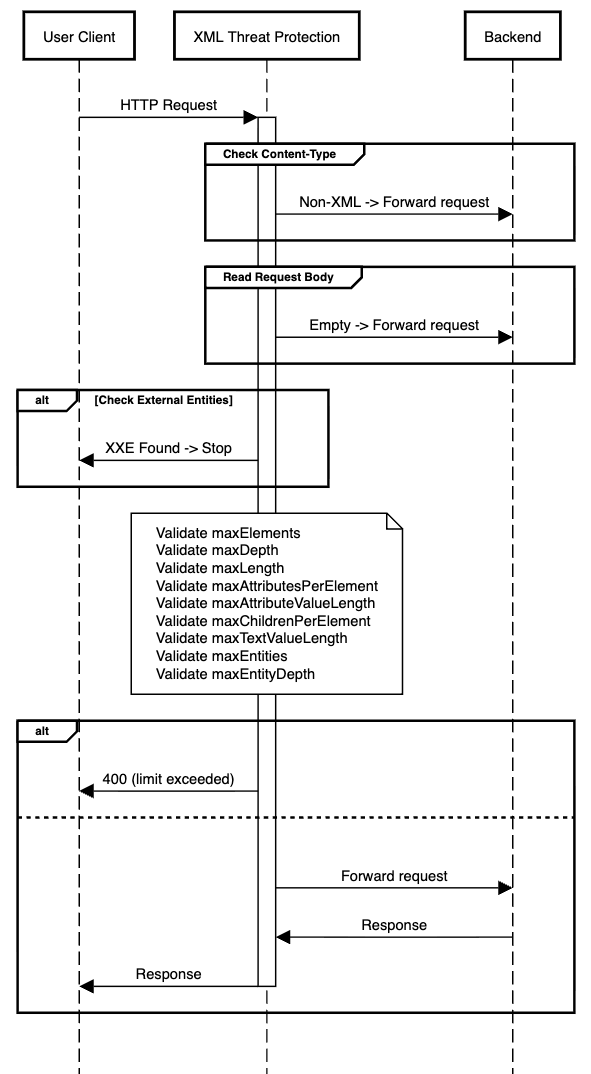

The following diagram illustrates the request flow when the XML Threat Protection policy is configured on an API endpoint.

Implementation Details

The policy processes each inbound request through the following steps:

1. The policy inspects the Content-Type request header (text/xml, application/xml, or any media type ending in +xml (including SOAP services)). If the content type is not XML-compatible (for example, application/json), the request is forwarded to the backend.

2. The policy reads the full request body. If the body is empty or absent, it treats it as valid and forwards it to the backend.

3. If allowExternalEntities is false (the default) and the XML document contains an external entity reference, the request is immediately rejected with a 400 XML External Entity Reference Encountered error.

4. The policy parses the XML body and validates it gainst the configured structural limits - maxElements, maxDepth, maxLength, maxAttributesPerElement, maxAttributeValueLength, maxChildrenPerElement, maxTextValueLength, maxEntities, maxEntityDepth.

5. If any configured limit is exceeded, the request is rejected with 400 status code and message identifying the violated constraint. For example, Max XML Depth Exceeded.

6. If a configuration value is invalid or non-numeric, the default value is used to prevent requests from being blocked caused by misconfiguration.

7. If all checks pass, the request is forwarded to the backend.

Error Messages

When the policy detects a structural violation, it rejects the request immediately with a 400 status code and the corresponding status message.

Code	HTTP status message	Reason
400	Invalid XML Data	The request body is not valid XML.
400	Max XML Elements Exceeded	The configured maxElements limit has been exceeded.
400	Max XML Depth Exceeded	The configured maxDepth limit has been exceeded.
400	Max XML Document Length Exceeded	The configured maxLength limit has been exceeded.
400	Max XML Attribute Count Exceeded	The configured maxAttributesPerElement limit has been exceeded.
400	Max XML Attribute Size Exceeded	The configured maxAttributeValueLength limit has been exceeded.
400	Max XML Child Element Count Exceeded	The configured maxChildrenPerElement limit has been exceeded.
400	Max XML Text Size Exceeded	The configured maxTextValueLength limit has been exceeded.
400	Max XML Entity Expansion Count Exceeded	The configured maxEntities limit has been exceeded.
400	Max XML Entity Expansion Depth Exceeded	The configured maxEntityDepth limit has been exceeded.
400	XML External Entity Reference Encountered	An external entity reference was detected and allowExternalEntities is set to false.
