Design and Implementation

Sequence Diagram

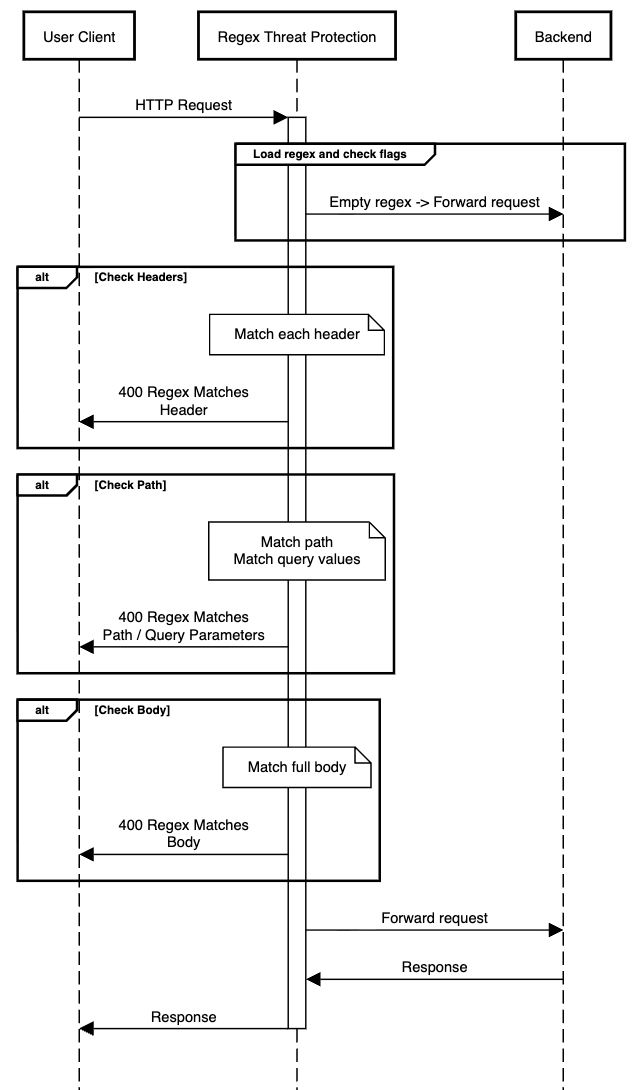

The following diagram illustrates the request flow when the Regex Threat Protection policy is configured on an API endpoint.

Implementation Details

The policy processes each inbound request through the following steps:

1. The policy loads the configured regular expression pattern (regex) and the inspection scope flags (checkHeaders, checkPath, checkBody). If the regex value is empty or not configured, no matching occurs, and all requests are forwarded to the backend.

2. If checkHeaders is true, each request header name and value is matched against the regex pattern. In the first match, the request is rejected with a 400 Regex Matches Header.

3. If checkPath is true, the URL path (URL-decoded) and each query parameter value (URL-decoded) are matched against the pattern. On a path match, the request is rejected with the 400 Regex Matches Path error. When a query parameter matches, the request is rejected with the 400 Regex Matches Query Parameters error. Query parameter keys are not decoded.

4. If checkBody is true, the full request body is matched against the pattern. On a match, the request is rejected with 400 Regex Matches Body.

5. Evaluation stops at the first match found. If no match is found across all enabled checks, the request is forwarded to the backend.

6. Matching uses Java Matcher.matches(), which requires the entire evaluated string to match the pattern. Wrap patterns with .* to detect substrings within longer strings.

Full-string Vs. Sub-string Matching

The policy uses Matcher.matches(), so the entire string being evaluated must match the pattern from start to end. This is equivalent to anchoring the pattern with ^ and $. The following table illustrates the difference:

Pattern	Input	Result	Explanation
SELECT	SELECT	Match	The entire string equals the pattern.
SELECT	DROP; SELECT * FROM users	No match	Pattern does not span the full string.
.*SELECT.*	DROP; SELECT * FROM users	Match	.* allows SELECT anywhere in the string.
`.*(?i)(SELECT	DROP).*`	drop table users	Match

Error Messages

When the policy detects a structural violation, it rejects the request immediately with 400 status code and the corresponding status message.

Code	HTTP status message	Reason
400	Regex Matches Header	A request header name or value matched the configured regex.
400	Regex Matches Path	The URL path matched the configured regex.
400	Regex Matches Query Parameters	A query parameter value matched the configured regex.
400	Regex Matches Body	The request body matched the configured regex.
