Design and Implementation

Policy Structure

Refer to the API Policy Structure.

Important Points about Policy Structure

Refer to the API Policy Important Points about Policy Structure.

Policy Usage

Refer to the API Policy Policy Usage.

Claims Verification Policy Parameters

• Name: This field contains the policy name. In case of JWT claims verification policy, it is always "JWTClaimsVerificationPolicy".

• TokenExpiryOverride: This field defines time which overrides JWT expiry time.

• Iss: This field defines Issuer of the JWT.

• Aud: This field defines recipient for which the JWT is intended.

• NonStandardClaims: This field defines non standard claims to be match with JWT claims.

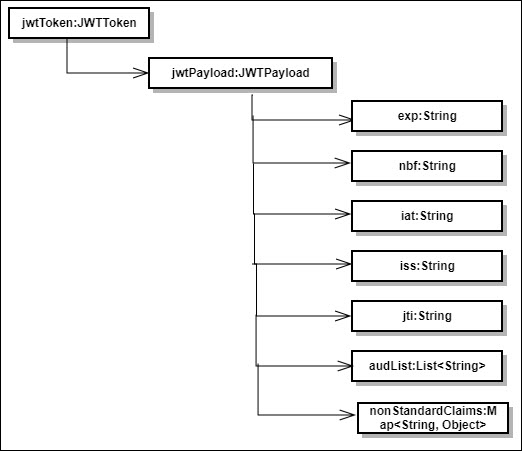

JWT Claims Structure Under JWT Token Object

JWT Standard Claims

• iss (issuer): Issuer of the JWT

• sub (subject): Subject of the JWT (the user)

• aud (audience): Recipient for which the JWT is intended

• exp (expiration time): Time after which the JWT expires

• nbf (not before time): Time before which the JWT must not be accepted for processing

• iat (issued at time): Time at which the JWT was issued; can be used to determine age of the JWT

• jti (JWT ID): Unique identifier; can be used to prevent the JWT from being replayed (allows a token to be used only once)

Error Messages

This section lists error messages that are specific to JWT Claims Validation Policy. For a complete list of error messages.

Error Name	HTTP Status Code	Cause
InvalidJWTClaimsPolicyArgumentTokenExpiryOverride	403	Token Expiry Override is not correct.
JWTClaimsPolicyArgumentTokenExpiryOverrideNotSpecified	403	Token Expiry Override is not specified.
InvalidJWTClaimsPolicyArgumentNonStandarnClaims	403	Defined Non Standard Claims are not correct.
JWTClaimsPolicyArgumentNonStandarnClaimsNotSpecified	403	Non Standard Claims are not specified.
InvalidJWTClaimsPolicyArgumentAudience	403	Defined Audience details are not correct.
JWTClaimsPolicyArgumentAudienceNotSpecified	403	Audience details are not specified.
InvalidJWTClaimsPolicyArgumentIssuer	403	Defined Issuer details are not correct.
JWTClaimsPolicyArgumentIssuerNotSpecified	403	Issuer details are not specified.
NonStandardClaimIsNotAuthorized	403	Non Standard Claim is not authorized.
AudIsNotAuthorized	403	Audience is not authorized.
AudNotConfiguredInJWTToken	403	Audience is not configured in the incoming JWT token.
InvalidIssWithMultipleValues	403	Incoming JWT token Issuer claim have multiple values.
IssNotAuthorized	403	Issuer is not authorized.
IssNotConfiguredInJWTToken	403	Issuer is not configured in the incoming JWT token.
IatGreaterThanCurrentTime	403	Time at which the JWT was issued is greater than current time.
IatGreaterThanExpTime	403	Time at which the JWT was issued is greater than expiry time.
IatIsNonNumeric	403	Time at which the JWT was issued is non numeric integer.
TokenNotAllowedBeforeNbf	403	Token not allowed before Nbf.
NbfIsNonNumeric	403	Nbf is non numeric integer.
ExpIsNonNumeric	403	Expiry time is non numeric integer.
TokenExpiryOverrideOrIatIsNonNumeric	403	Token Expiry Override or JWT Issued time is non numeric integer.
TokenExpired	403	JWT token is expired.

Business Rules Assumptions

The following scenarios are not supported in the policy:

• If API Key is passed in JWT token payload.

• If non-standard claims are passed as array in JWT token payload.
