Design and Implementation

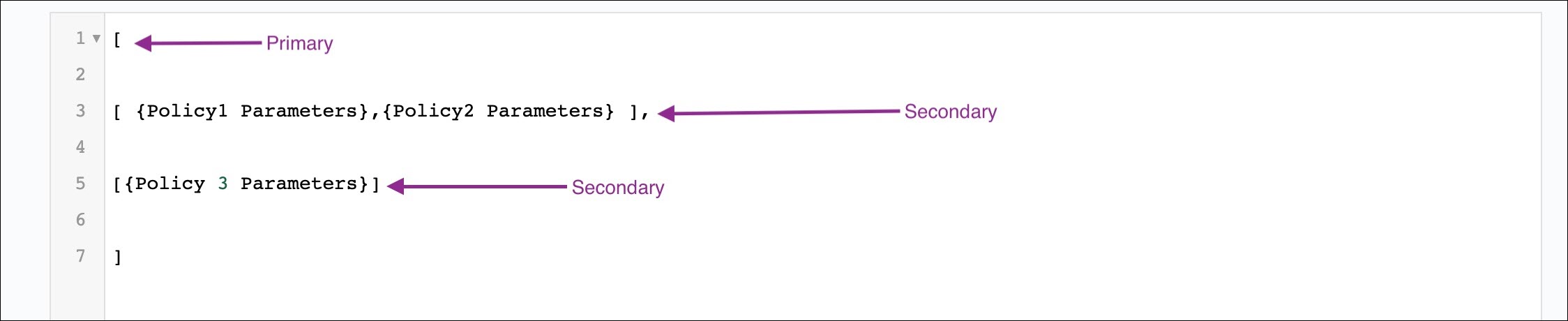

Policy Structure

Policy can be defined in the below structure:

[

[ {Policy1 Parameters},{Policy2 Parameters} ],

[{Policy 3 Parameters}]

]

Important Points about Policy Structure

• Policy for API is defined under pre-input parameter Policies.

• Policies should contain valid JSON array.

• Policies consists of two types of JSON arrays:

  • Primary JSON array and secondary JSON array.

  • Primary JSON Array is the main JSON array defined under Policies. Each element of Primary JSON array can contain secondary JSON array, which is JSON array of policies.

• For elements of Primary JSON array, evaluation is done in AND manner while for element of Secondary JSON Array, evaluation is done in OR manner.

  • This means you can define above policy structure as ((Policy1 || Policy2) && Policy3).

• In case any element of Primary JSON array is not successfully evaluated, then further elements of Primary JSON Array are not evaluated because evaluation manner for Primary JSON Array is AND.

• Policy is evaluated in the order in which they are defined, for example, policy, which is specified first is evaluated first.

• If none of the parameters for policy are defined, then that policy is ignored. For the following example configuration, if statusMessage for response equals Success, then the call is forwarded otherwise, the call is blocked.

[
  [{}],
  [{
    "Name": "Match",
    "Operation": "ContainsAll",
    "Context": "Response",
    "ArgumentLocation": "${response.statusMessage}",
    "MatchExpression": ["Success"],
    "Effect" : "Allow"
  }]
]

Context Object Structure

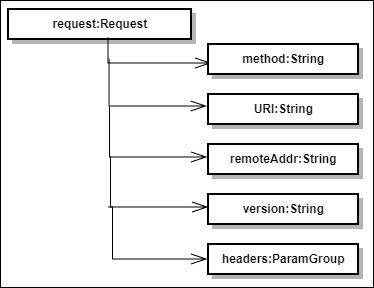

Request Object Structure

Request Object Description

S#	Request Object Field Name	Field Description	Field Name in Request	Argument Location Example
1	Method	Contains HTTP method like GET, POST	method	${request.method}
2	URI	Contains request uri like /aj2068?api_key=g8nftwaew4srgh6p95k7d4cd	URI	${request.URI}
3	Remote Address	Contains origin server IP	remoteAddr	${request.remoteAddr}
4	Version	Contains HTTP version for request, such as HTTP/1.1	version	${request.version}
5	Headers	Contains all request headers	headers	${request.headers.get('Header Name')}

note

Only field names listed in above table is supported for match policy for Request context.

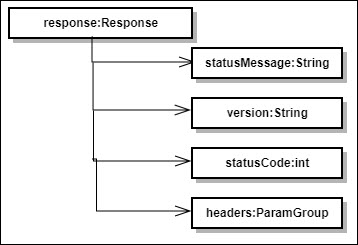

Response Object Structure

Response Object Description

S#	Request Object Field Name	Field Description	Field Name in Request	Argument Location Example
1	Response Status Message	Contains response status message	statusMessage	${response.statusMessage}
2	Version	Contains HTTP version for response like HTTP/1.1	version	${response.version}
3	Response Status Code	Contains response status code	statusCode	${response.statusCode}
4	Headers	Contains all response headers	headers	${response.headers.get('Header Name')}

note

Only field names listed in above table is supported for match policy for Response context.

Error Messages

Error Name	HTTP Status Code	Cause
PolicyFailure	403	Defined policies are not evaluated successfully.
InvalidJSONForPolicy	403	Defined policies are not in valid JSON format.
InvalidJSONFormatForPolicy	403	JSON for policies is valid but policies are not defined as List in defined JSON.
InvalidPolicyName	403	Policy name for any one of the defined policy is not correct.
PolicyNameNotSpecified	403	Policy name for any one of the defined policy is not specified.
InvalidMatchPolicyOperation	403	Match operation for any one of the defined match policy is not correct.
MatchPolicyOperationNotSpecified	403	Match operation for any one of the defined match policy is not specified.
InvalidMatchPolicyContext	403	Context for any one of the defined match policy is not correct.
MatchPolicyContextNotSpecified	403	Context for any one of the defined match policy is not specified.
MatchPolicyContextUnavailable	403	Required Context is not configured in policy.
InvalidMatchPolicyArgumentLocation	403	Argument Location for any one of the defined match policy is not defined as String.
MatchPolicyArgumentLocationNotSpecified	403	Argument Location for any one of the defined match policy is not specified.
InvalidMatchPolicyExpression	403	Match Expression for any one of the defined match policy is not defined as list.
MatchPolicyExpressionNotSpecified	403	Match Expression for any one of the defined match policy is not specified.
MatchExpressionNotEvaluatedAsString	403	Match Expression should be defined as an array of list. If that list does not contain String value, this exception is thrown.
MatchPolicyArgumentLocationEvaluationError	403	Java unified expression for argument location for any one of the defined match policy is not evaluated successfully or argument location evaluation does not result in string, integer, array of string or array of integer.
ArgumentDoesNotContainAnyDefinedMatchExpression	403	Argument Does not matches with any defined expression for match policy type ContainsAny.
ArgumentDoesNotContainAllDefinedMatchExpressions	403	Argument Does not matches with any defined expression for match policy type ContainsAll.
MatchOperationNotSupportedForPayload	403	Match Operation is not supported for payload processing.
MatchOperationSupportedOnlyForPayload	403	Match Operation only supports payload processing.
InvalidMatchPolicyEffect	403	Value in the effect parameter of match policy defined anything except Allow, Deny.
AccessDeniedDueToMatchPolicyDenyEffect	403	Call is blocked as one of the defined match policy with effect as "Deny" has been evaluated successfully.
