API Proxy Server tab

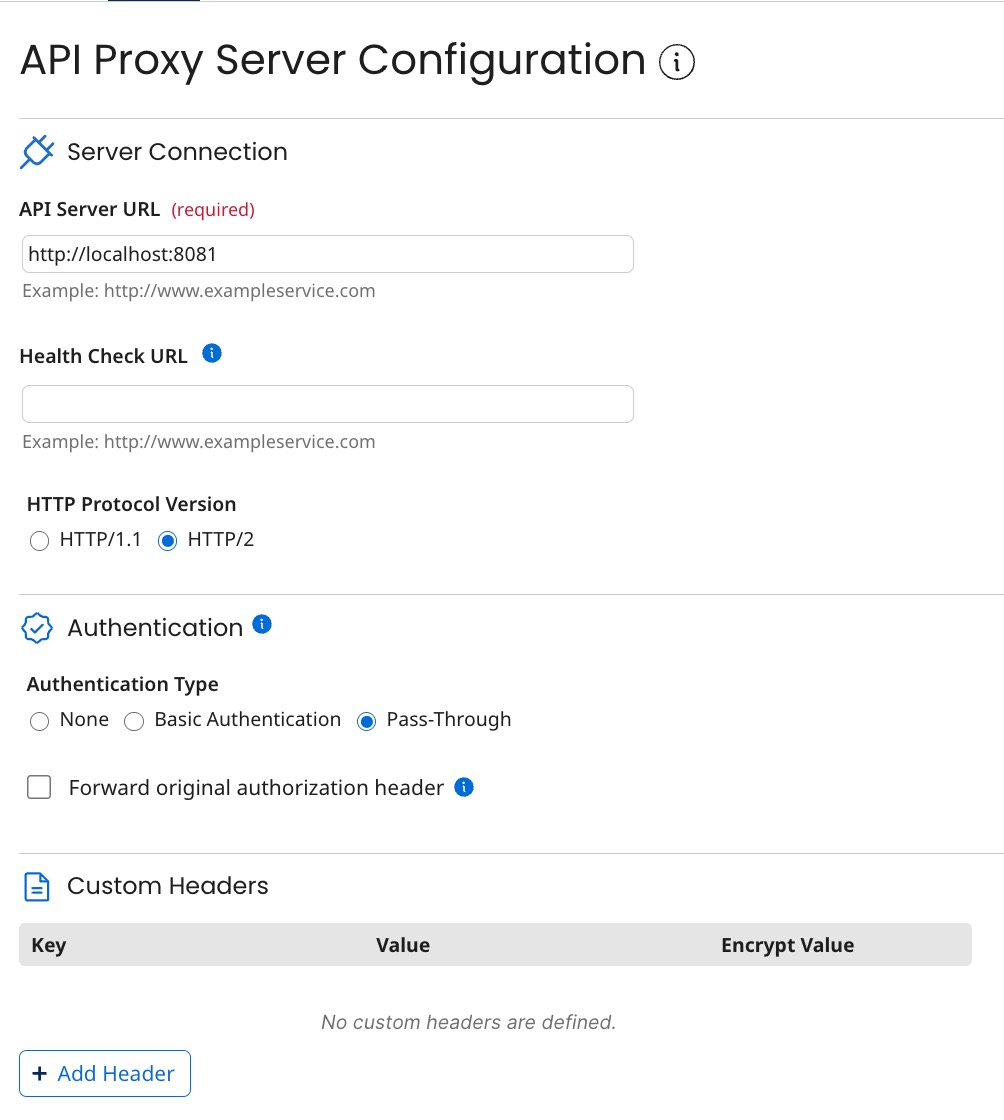

The Server tab lets you configure server settings for an API Proxy component.

tip

To learn more about a field on the API Proxy Configuration - Server tab, click the (i) information icon next to it.


Server Connection

API Server URL
The URL to which the API Gateway sends API service requests. If a Swagger specification file is imported into the component and the API\_URL field was selected for importing, that field’s value appears here.

Health Check URL
The URL to which API service heath checks can be sent. An HTTP 200 \(OK\) response indicates the server on which the API service is hosted is operating normally.

HTTP protocol version
The API proxies support the HTTP/2 protocol, which enhances the efficiency of API communications. By default, the system operates on HTTP/1 until HTTP/2 is explicitly enabled. This capability allows API proxies to leverage the benefits of HTTP/2, resulting in improved response times and reduced latency for API calls.

Authentication

Authentication Type The type of authentication used on the server on which the API service is hosted. The following types are available:

  • None — No authentication is applied.

  • Basic Authentication — Selecting this authentication type reveals the required User Name and Password fields.

  • Pass-Through — The original authorization header is passed to the target endpoint.

  • OAuth 2.0 — The Gateway acquires a Bearer token from your identity provider using the client credentials grant type and injects it into the Authorization header of each outgoing request. Selecting this authentication type reveals the following fields:

    FieldDescription
    Issuer URLURL of the identity provider. Click Test Issuer URL to validate the URL before saving. If the URL is invalid, the message "The url that you entered is invalid" appears below the field.
    Client IDThe client identifier for OAuth authentication.
    Client CredentialThe client secret for the client created in your identity provider.
    Refresh Time (seconds)The interval, in seconds, at which the Gateway refreshes the access token. Set this value to match or be less than the token expiration configured at the identity provider.
    ScopesOne or more scopes that determine the actions and resources accessible through third parties in the client credential flow. At least one scope is required. Click + Add Scope to add a scope or the delete icon to remove one.

Send client credential in body

By default, credentials are sent as an authorization header. Enable this option only if your identity provider requires credentials in the request body.

Forward original authorization header

If selected, the original authorization header is forwarded in the X-Forwarded-Authorization header.

Custom Headers

Lists custom headers included by the API Gateway in API service requests. Each custom header consists of a key and value. The value in a custom header can be encrypted.

  • Clicking Add Header enables the addition of a custom header.

  • While adding a custom header, clicking Encrypt enables the Password for an encrypted value to be set.

  • Clicking the Trash icon in the Remove column for a listed custom header removes that custom header.
